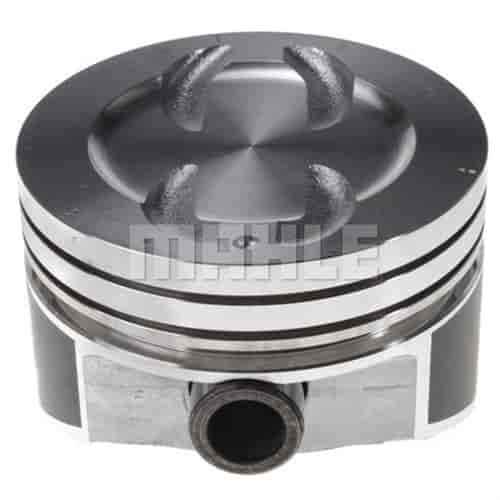

Hypereutectic Piston Set 1971-1995 Small Block Chevy 350 ci (5.7L) with 4.060 in. Bore (+.060 in.)
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- Hypereutectic Piston Set
- 1971-1995
- Small Block Chevy 350 ci (5.7L)
- 4.060 in. Bore (+.060 in.)
- Dish with 4 Valve Reliefs
- Coated Skirt
- Set of 8
- Rings Not Included
Technical Specs:
- Material: Hypereutectic
- Bore: 4.060 in.
- Piston Top: Recessed Head w/4 Valve Reliefs; 0.1023 in. Recess Depth; w/2.767 in. diameter
- Compression Height: 1.55 in.
- Compression Ring Groove: 5/64 in.
- Second Ring Groove: 5/64 in.
- Oil Ring Groove Width: 3/16 in.
- Pin Size: 0.927 in. O.D. (23.553 mm)
- Pin Type: Offset Location
- Skirt Type: Coated
- Piston Skirt Clearance: 0.002 in.
OE Quality Pistons
MAHLE Original is an American brand with one of the oldest pedigrees of supplying pistons, assemblies, cylinder liners, bearings, and valves for passenger and commercial vehicles worldwide. These piston and ring sets are cast from high temperature-resistant aluminum alloys for a high standard of excellence and performance. Designed to meet OE quality standards and even contain many premium features for an uncompromising quality not found elsewhere. Many manufacturers will even ask MAHLE to supply them with pistons for premium engine offerings. Whether you are rebuilding a project or replacing worn parts, MAHLE Original has the parts you need to get the job done.
Show More
MAHLE Original Piston Features
- Pin Offset - Reduced engine noise
- Compensated Ring Grooves - Assures proper ring loading and oil control
- Expansion Controlled Designs - Tighter fitting clearances reduce engine noise, wear, emissions, and improve oil control in the long term.
- Lightweight Design - Reduced reciprocating mass without sacrificing reliability. This reduces bearing loads, improves engine response, and makes a smoother running engine.
