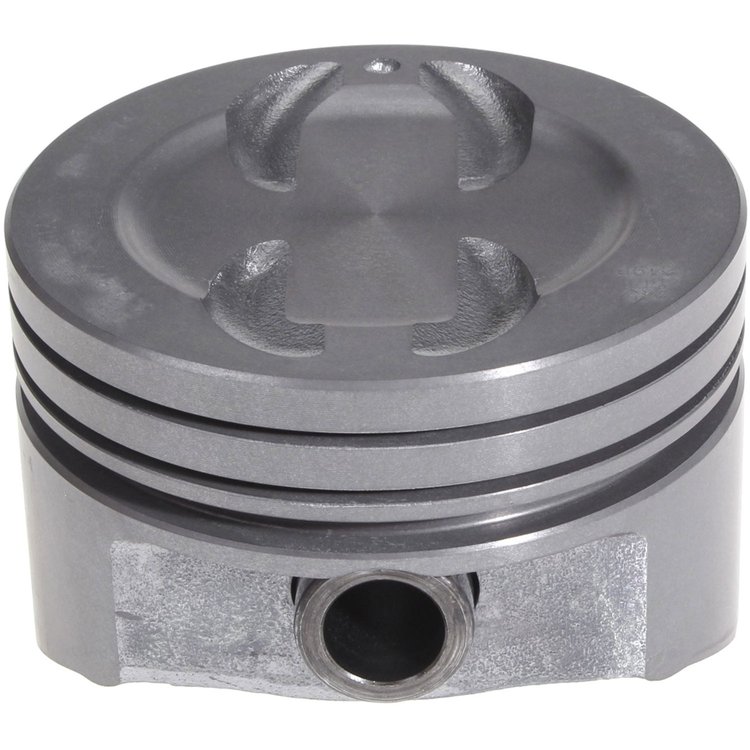

Piston Set 1971-1995 Small Block Chevy 350ci (5.7L) with 4.020" Bore (+.020")

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

1971-1995
Small Block Chevy 350ci (5.7L)
4.020'' Bore (+.020")
Dish with 4 Valve Reliefs
Rings Not Included

Technical Specs:
Material: Hypereutectic
Bore: 4.00' (101.6mm)
Piston Top: Recessed Head w/4 Valve Reliefs; 0.1023" Recess Depth; w/2.767" diameter
Compression Height: 1.55"
Compression Ring Groove: 5/64"
Second Ring Groove: 5/64"
Oil Ring Groove Width: 3/16"
Pin Size: 0.927" O.D. (23.553mm)
Pin Type: Offset Location
Skirt Type: Non-Coated
Piston Skirt Clearance: 0.002"

Part TypePiston

BrandCLEVITE MAHLE

Package Height2.9

Package Width4.5

Package Length4.5

Weight1.55 PG

Part CategoryReplacement Parts

Vendor Part Number2243544020

Package Qty1

Package TypeEA
