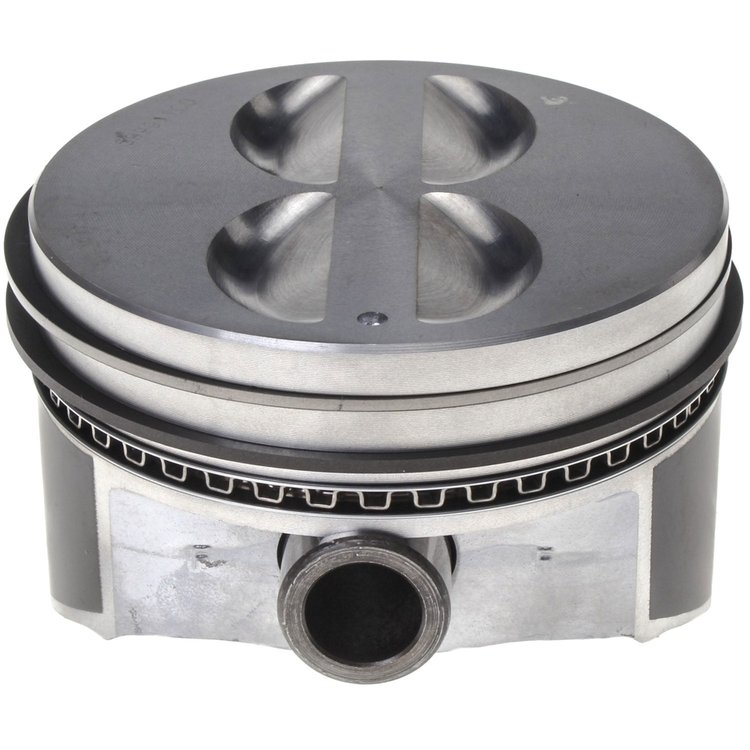

Piston Set With Rings 1969-1990 Small Block Chevy V8 350ci (5.7L)  with 4.040'' Bore (+.040")
InfoVehicle Info Needed
CLEVITE MAHLEPART NUMBER: 695-2243547WR040

Piston Set With Rings 1969-1990 Small Block Chevy V8 350ci (5.7L) with 4.040'' Bore (+.040")

$29599
ShippingShips on 09/18/2026
Lowest PriceLowest Price Guarantee

GM
    Piston Set With Rings
  • 1969-1990
  • Small Block Chevy V8 350ci (5.7L)
  • 4.040'' Bore (+.040")
  • Flat Top with 4 Valve Reliefs
  • Coated Skirt

    Technical Specs:
  • Material: Hypereutectic
  • Bore: 4.040' (102.6mm)
  • Piston Top: Flat Top w/4 Valve Reliefs
  • Compression Height: 1.55"
  • Compression Ring Groove: 5/64"
  • Second Ring Groove: 5/64"
  • Oil Ring Groove Width: 3/16"
  • Full Length: 2.605" (66.167mm)
  • Pin Size: 0.927" O.D. (23.553mm)
  • Pin Type: Fixed, Offset Location
  • Skirt Type: Coated
  • Piston Skirt Clearance: 0.002"
  • Notes: Piston Rings Included; Casting Number - 101L63
  • Year Range and applicable VIN code: CAR - 1969-71 "-", 1972-74 "J" "K", 1974 "T", 1976 "V", 1976-77 "X", 1972-74 1978 "H", 1972 1974-78 "L", 1980-81 1983-88 "6", 1979-80 1985-90 "8"; TRUCK - 1969-71 "-", 1969-72 "E", 1971 "A" "B", 1972 "J", 1974 "W", 1972-74 "H", 1973-75 "Y", 1973-76 "V", 1980 "P", 1974-86 "L", 1979-88 "M", 1971 1973 1987-90 "K", 1980-90 "A", 1974 "V" "W" "Y"

OE Quality Pistons

MAHLE Original is an American brand with one of the oldest pedigrees of supplying pistons, assemblies, cylinder liners, bearings, and valves for passenger and commercial vehicles worldwide. These piston and ring sets are cast from high temperature-resistant aluminum alloys for a high standard of excellence and performance. Designed to meet OE quality standards and even contain many premium features for an uncompromising quality not found elsewhere. Many manufacturers will even ask MAHLE to supply them with pistons for premium engine offerings. Whether you are rebuilding a project or replacing worn parts, MAHLE Original has the parts you need to get the job done.

Show More

MAHLE Original Piston Features

  • Pin Offset - Reduced engine noise
  • Compensated Ring Grooves - Assures proper ring loading and oil control
  • Expansion Controlled Designs - Tighter fitting clearances reduce engine noise, wear, emissions, and improve oil control in the long term.
  • Lightweight Design - Reduced reciprocating mass without sacrificing reliability. This reduces bearing loads, improves engine response, and makes a smoother running engine.
Part TypePiston
Product LineMAHLE Original Piston & Rings Sets
BrandCLEVITE MAHLE
Package Height4.6
Package Width9.7
Package Length18.7
Weight14.6 PG
Part CategoryReplacement Parts
Vendor Part Number2243547WR040
Package Qty1
Package TypeEA
