Product Discontinued
CLEVITE MAHLEPART NUMBER: 695-2243548WR030

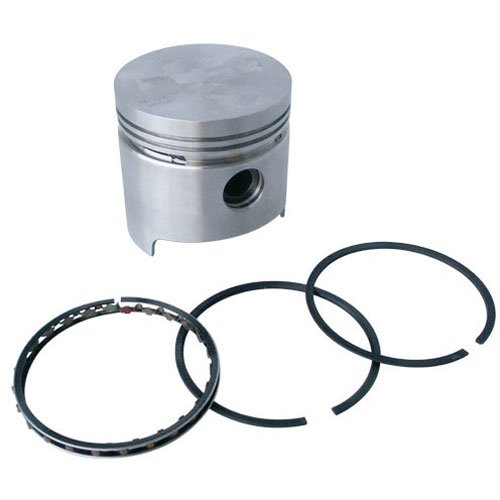

Piston and Rings Set 1969-1990 Small Block Chevy V8 350ci (5.7L) with 4.030'' Bore (+.030")
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
GM
Piston and Rings Set 1969-1990 Small Block Chevy V8 350ci (5.7L) 4.030'' Bore (+.030") Flat Top with 4 Valve Reliefs Set of 8
Technical Specs:
- Material: Hypereutectic
- Bore: 4.030' (102.36mm)
- Piston Top: Flat Top w/4 Valve Reliefs
- Compression Height: 1.55"
- Compression Ring Groove: 5/64"
- Second Ring Groove: 5/64"
- Oil Ring Groove Width: 3/16"
- Full Length: 2.605" (66.167mm)
- Pin Size: 0.927" O.D. (23.553mm)
- Pin Type: Press Fit, Offset Location
- Skirt Type: Non-Coated
- Piston Skirt Clearance: 0.002"
- Rod Length: 5.700"
- Stroke: 3.480"
Part TypePiston
BrandCLEVITE MAHLE
Package Height3.1
Package Width4.4
Package Length4.5
Weight1.72 PG
Part CategoryReplacement Parts
Vendor Part Number2243548WR030
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
