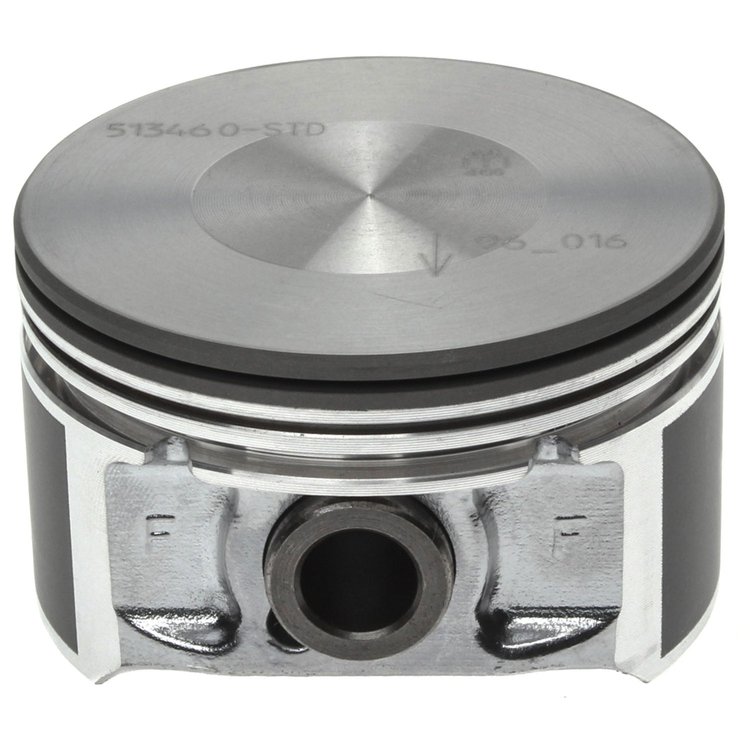

Piston and Rings Set 1998-2010 Chrysler V6 2.7L DOHC with 3.41"/86.50mm Bore (+.50mm)
InfoVehicle Info Needed
CLEVITE MAHLEPART NUMBER: 695-2243549WR050

Piston and Rings Set 1998-2010 Chrysler V6 2.7L DOHC with 3.41"/86.50mm Bore (+.50mm)

$42715
ShippingShips on 09/18/2026
Lowest PriceLowest Price Guarantee

Chrysler
    Piston and Rings Set
  • 1998-2010
  • Chrysler V6 2.7L DOHC
  • 3.41"/86.50mm Bore (+.50mm)
  • Flat Top (Reduced Compression Height)
  • Coated Skirt
  • Set of 6

    Technical Specs:
  • Material: Aluminum
  • Compression Height: 1.217" (This is a .010" reduced Compression Height.)
  • Compression Ring Groove: 1.50mm (Hard anodized top ring land)
  • Second Ring Groove: 1.50mm
  • Oil Ring Groove Width: 3.00mm
  • Full Length: N/A
  • Pin Size: 0.866" O.D. (22.0mm)
  • Pin Type: N/A
  • Skirt Type: Coated
  • Piston Skirt Clearance: 0.002"
  • Notes: Piston Rings Included; Casting Number - 86L54
  • Year Range and applicable VIN code: 1998-2010 "R" / "T" / "D" / "U"

OE Quality Pistons

MAHLE Original is an American brand with one of the oldest pedigrees of supplying pistons, assemblies, cylinder liners, bearings, and valves for passenger and commercial vehicles worldwide. These piston and ring sets are cast from high temperature-resistant aluminum alloys for a high standard of excellence and performance. Designed to meet OE quality standards and even contain many premium features for an uncompromising quality not found elsewhere. Many manufacturers will even ask MAHLE to supply them with pistons for premium engine offerings. Whether you are rebuilding a project or replacing worn parts, MAHLE Original has the parts you need to get the job done.

Show More

MAHLE Original Piston Features

  • Pin Offset - Reduced engine noise
  • Compensated Ring Grooves - Assures proper ring loading and oil control
  • Expansion Controlled Designs - Tighter fitting clearances reduce engine noise, wear, emissions, and improve oil control in the long term.
  • Lightweight Design - Reduced reciprocating mass without sacrificing reliability. This reduces bearing loads, improves engine response, and makes a smoother running engine.
Part TypePiston
Product LineMAHLE Original Piston & Rings Sets
BrandCLEVITE MAHLE
Package Height3.43
Package Width9.06
Package Length13.56
Weight1.08 PG
Part CategoryReplacement Parts
Vendor Part Number2243549WR050MM
Package Qty1
Package TypeEA
