Product Discontinued
CLEVITE MAHLEPART NUMBER: 695-2243561WR

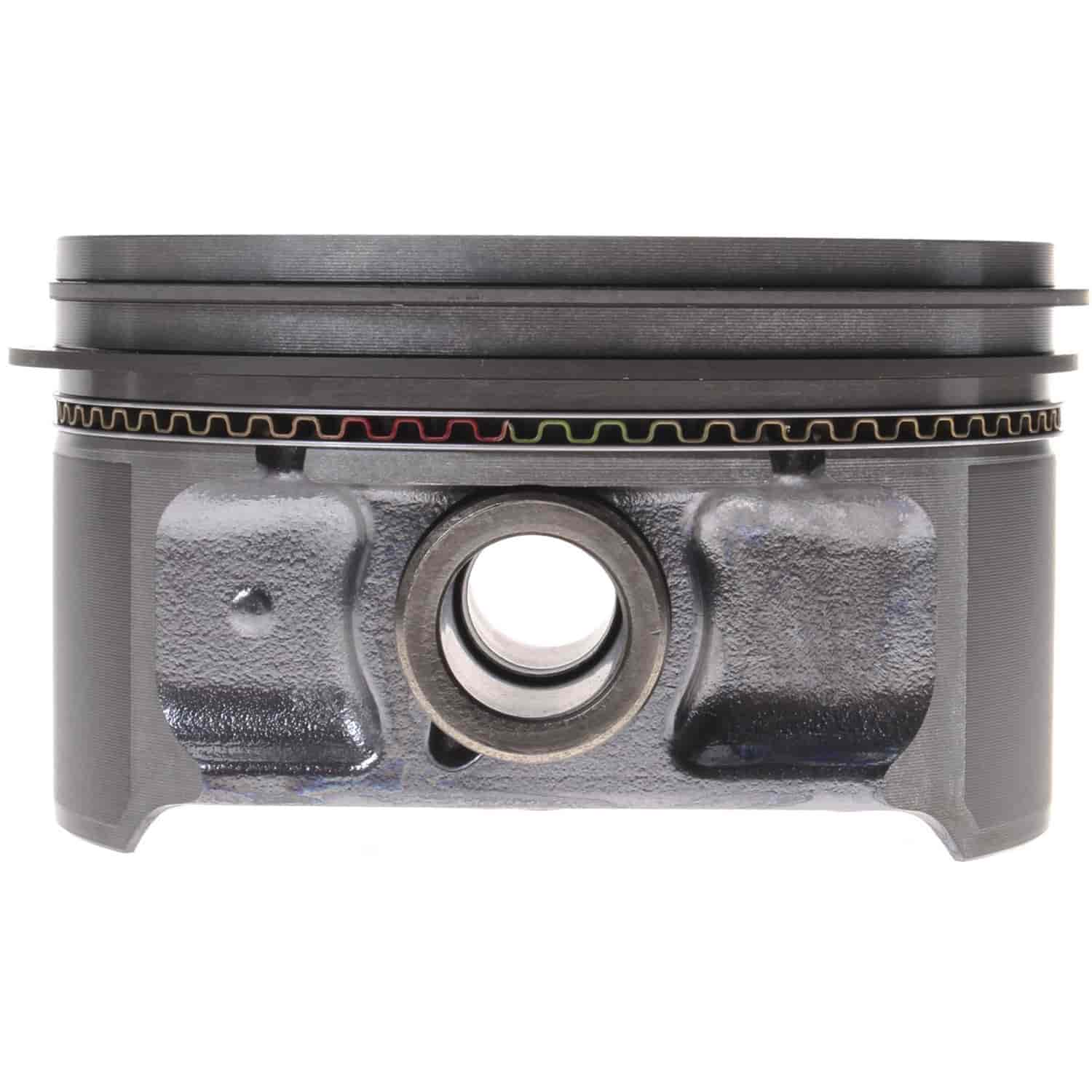

Piston With Rings 1997-1999 Ford Modular V10 6.8L SOHC with 3.552" Bore (Standard)
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford
Piston With Rings 1997-1999 Ford Modular V10 6.8L SOHC 3.552" Bore (Standard) Coated Skirt 1/pkg
Technical Specs:
- Material: Aluminum
- Bore: 3.552' (90.22mm)
- Compression Height: 1.22047" (31.00mm)
- Compression Ring Groove: 1.50mm
- Second Ring Groove: 1.50mm
- Oil Ring Groove Width: 3.00mm
- Full Length: 2.036" (51.714mm)
- Pin Size: 0.866" O.D. (22.0mm)
- Pin Type: Floating
- Skirt Type: Coated
- Piston Head Type: Dish
- Notes: Piston Rings Included; Ring Type THM-13
Part TypePiston
BrandCLEVITE MAHLE
Package Height3.9
Package Width4.3
Package Length5.4
Weight1.05 PG
Part CategoryReplacement Parts
Vendor Part Number2243561WR
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
