Product Discontinued
CLEVITE MAHLEPART NUMBER: 695-2243561WR030

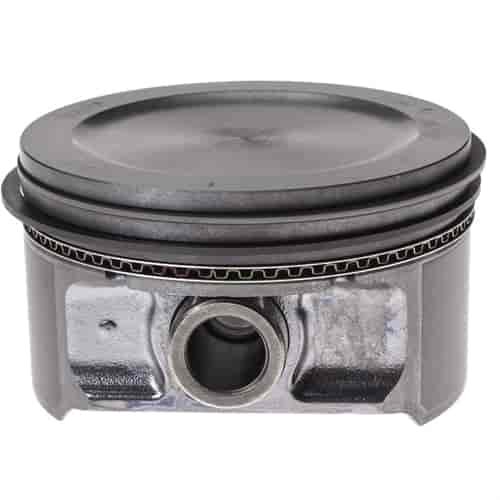

Piston and Rings Set 1997-1999 Ford Modular V10 6.8L SOHC with 3.582" Bore (+.030")
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford
- Piston and Rings Set
- 1997-1999
- Ford Modular V10 6.8L SOHC
- 3.582" Bore (+.030")
- Coated Skirt
- Set of 10
Technical Specs:
- Material: Aluminum
- Bore: 3.582' (90.8828mm)
- Compression Height: 1.22047" (31.00mm)
- Compression Ring Groove: 1.50mm
- Second Ring Groove: 1.50mm
- Oil Ring Groove Width: 3.00mm
- Full Length: 2.036" (51.714mm)
- Pin Size: 0.866" O.D. (22.0mm)
- Pin Type: Floating
- Skirt Type: Coated
- Piston Head Type: Dish
- Notes: Piston Rings Included; Ring Type THM-13
Part TypePiston
BrandCLEVITE MAHLE
Package Height3.75
Package Width9.0
Package Length23.0
Weight0.74 PG
Part CategoryReplacement Parts
Vendor Part Number2243561WR030
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
