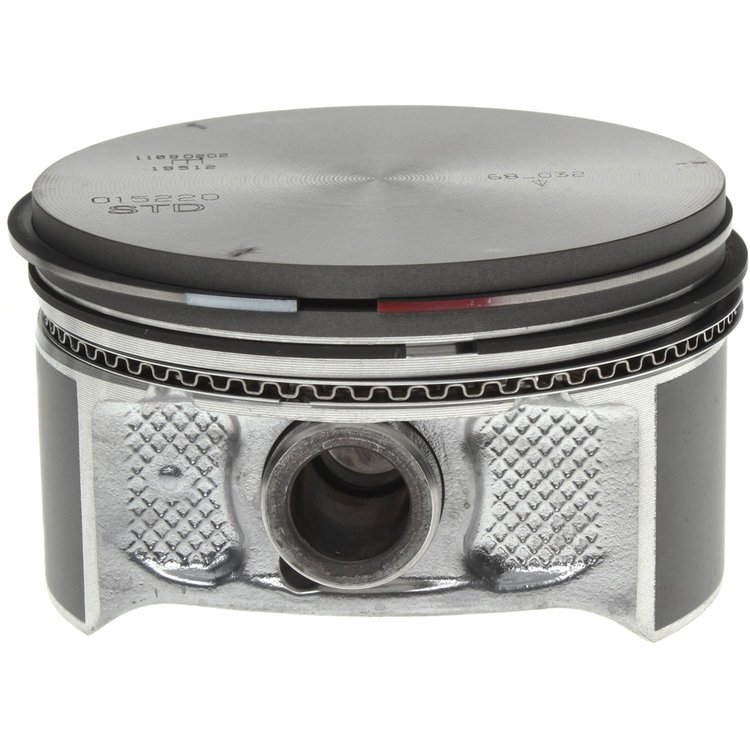

Piston With Rings 2004-2010 Ford Modular V8 5.4L SOHC 3-Valve with 90.965mm Bore (+.75mm)

Name: Piston With Rings 2004-2010 Ford Modular V8 5.4L SOHC 3-Valve with 90.965mm Bore (+.75mm)
Brand: CLEVITE MAHLE
SKU: 695-2243580WR075
Price: 279.99 USD
Availability: InStock

^$279⁹⁹

Ships on 09/18/2026

Lowest Price Guarantee

Ford

2004-2010
Ford Modular V8 5.4L SOHC 3-Valve
VIN 5/V
90.965mm Bore (+.75mm)
Flat Top
Coated Skirt
1/pkg

Technical Specs:
Material: Hypereutectic
Compression Ring Groove: 1.50mm
Second Ring Groove: 1.50mm
Oil Ring Groove Width: 3.00mm
Pin Size: .866" O.D.
Pin Type: Floating
Skirt Type: Coated/ Anodized Ring Groove
Piston Skirt Clearance: 0.001"
Piston Type: Flat Top

Part TypePiston

BrandCLEVITE MAHLE

Package Height3.6

Package Width4.8

Package Length4.8

Weight1.21 PG

Part CategoryReplacement Parts

Vendor Part Number2243580WR075MM

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations
