Product Discontinued
CLEVITE MAHLEPART NUMBER: 695-2243708

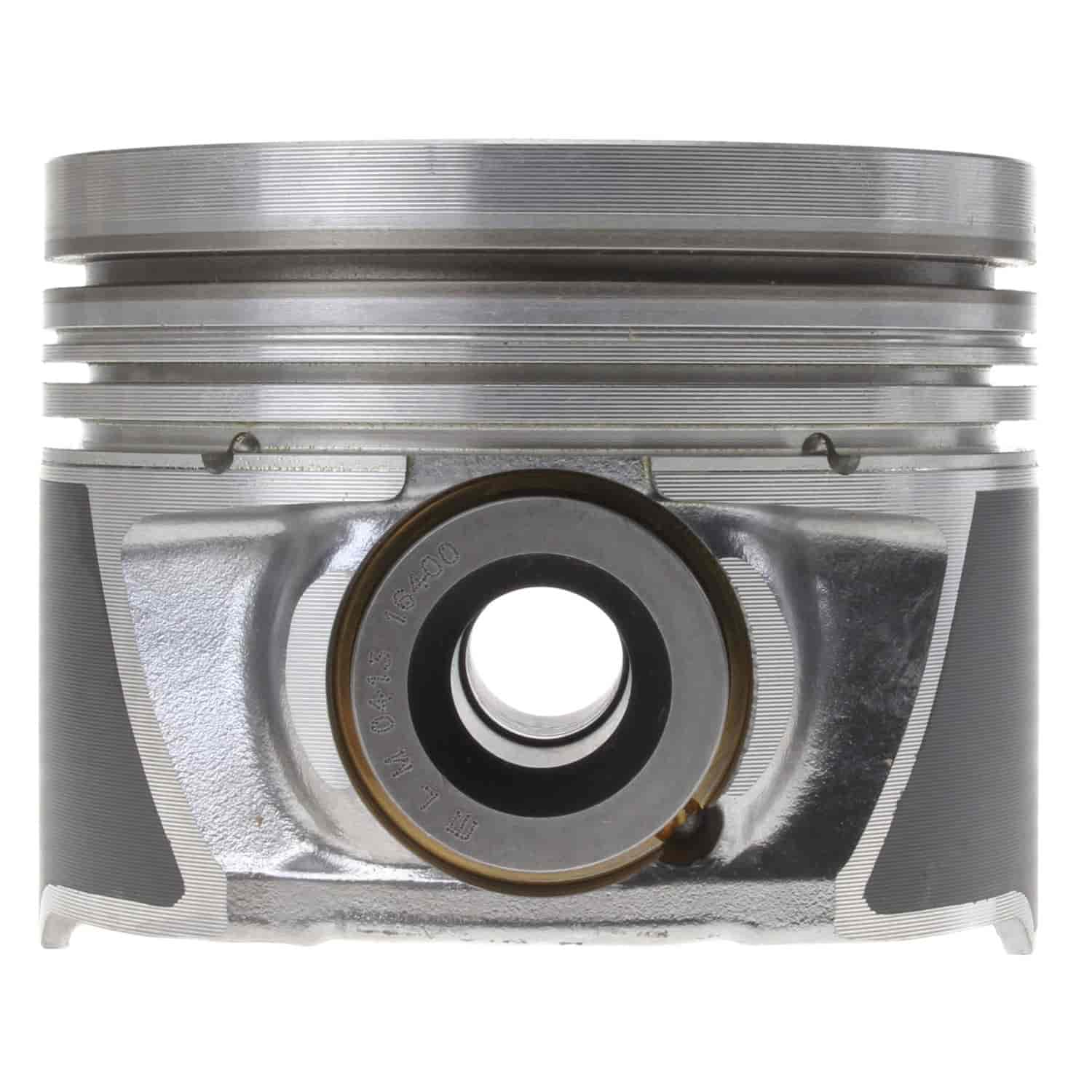

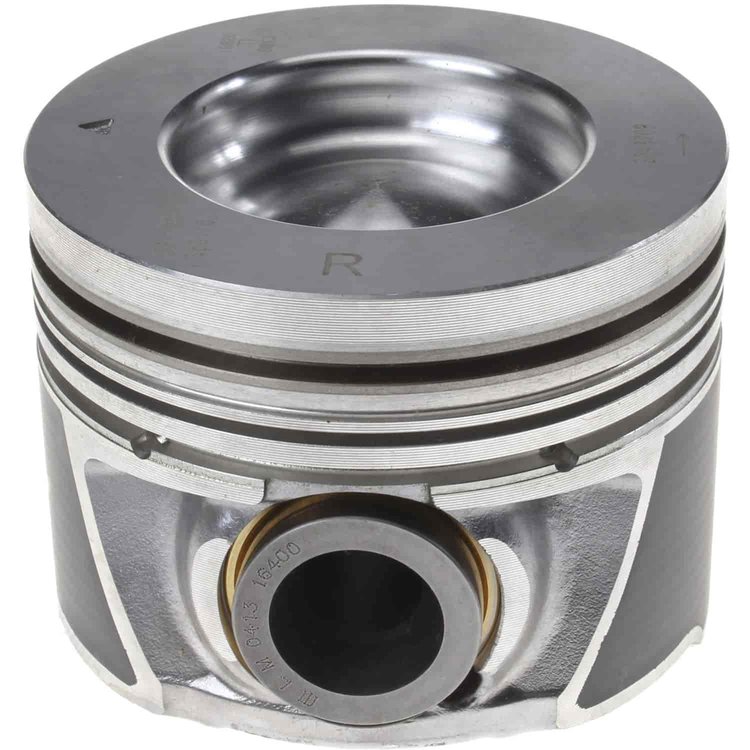

Piston 2006-2010 Chevy/GMC Duramax Diesel V8 6.6L Right Bank with 4.055" Bore (Standard)
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
GM
- Piston
- 2006-2010
- Chevy/GMC Duramax Diesel V8 6.6L
- Right Bank
- 4.055" Bore (Standard)
- Set of 4
- Rings Not Included
Specifications: - Pin Length: 80.3mm
- Bore: 103.0mm
- Full Length: 79.8mm
- Pin O.D: 34.5mm
- Compression Height: 49.8mm
- Combustion Chamber Depth: 15.6mm
- Skirt Coating: Graphite Coated
- Combustion Chamber Diameter: 59.8mm
- Piston Skirt Clearance: .1mm
Quality Diesel Pistons from One of the Largest Original Equipment Piston Manufacturers in the World
Mahle Original Diesel Pistons are designed to meet or exceed the original manufacturer's specifications to reduce engine noise, piston and cylinder wear, and improve oil control.
Part TypePiston
Product LineMAHLE Original Diesel Pistons
BrandCLEVITE MAHLE
Package Height5.4
Package Width5.5
Package Length5.9
Weight3.24 PG
Part CategoryReplacement Parts
Vendor Part Number2243708
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
