Vehicle Info NeededCLEVITE MAHLEPART NUMBER: 695-S2241916

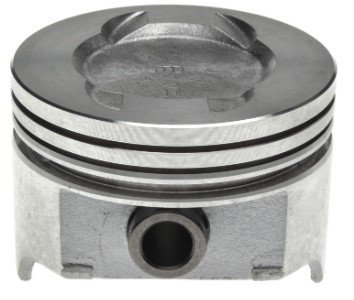

Piston 1963-1976 Small Block Ford 289/302ci./L6 240 ci. w/4.00 in. Bore (Standard)
$2759
Ships on 11/02/2026
Lowest Price GuaranteeFord
Single Piston1963-1976 Small Block Ford 289/302 ci. & Ford L6 240 ci. 4.00 in. Bore (Standard) Rings Not Included Sold Individually
Clevite Mahle S2241916 Specifications:
- Material: Aluminum
- Bore: 4.00 in. (101.6mm)
- Compression Chamber Depth: .140 in.
- Compression Chamber Diameter: 2.45 in.
- Compression Height: 1.585 in.
- Compression Ring Groove: 5/64 in.
- Second Ring Groove: 5/64 in.
- Oil Ring Groove Width: 3/16 in.
- Pin Size: .912 in. O.D.
- Skirt Type: Non-Coated
- Piston Skirt Clearance: 0.002 in.
- Piston Type: Recessed Head w/4 Valve Reliefs
Part TypePiston
BrandCLEVITE MAHLE
Package Height4.0
Package Width4.0
Package Length4.37
Weight1.57 PG
QuantitySold individually
Piston MaterialAluminum
Bore4 in (101.6 mm)
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
