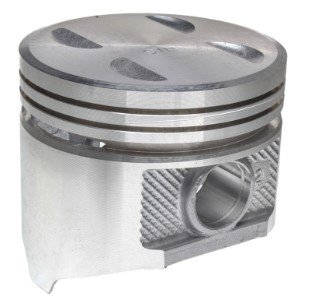

Single Piston for 1968-2001 Chrysler 318 ci. (5.2L) Engine [3.910 in. std. Bore]

Vehicle Info Needed

CLEVITE MAHLEPART NUMBER: 695-S2242007

Single Piston for 1968-2001 Chrysler 318 ci. (5.2L) Engine [3.910 in. std. Bore]

Name: Single Piston for 1968-2001 Chrysler 318 ci. (5.2L) Engine [3.910 in. std. Bore]
Brand: CLEVITE MAHLE
SKU: 695-S2242007
Price: 31.66 USD
Availability: InStock

^$31⁶⁶

Ships on 09/09/2026

Lowest Price Guarantee

Chrysler

Single Piston

1968-2001 Chrysler 318 ci. (5.2L) Engine

3.910 in. std. Bore

Flat top w/Four Valve Reliefs

5/64 in. x 5/64 in. x 3/16 in. Ring Grooves

Sold Individually

Clevite Mahle S2242007 Single Piston:

Material: Aluminum
Bore: 3.910 in.
Compression Height: 1.741 in.
Compression Ring Groove: 5/64 in.
Second Ring Groove: 5/64 in.
Oil Ring Groove Width: 3/16 in.
Pin Size: .984 in. O.D.

Part TypePiston

BrandCLEVITE MAHLE

Package Height4.0

Package Width4.0

Package Length4.37

Weight1.56 PG

Piston Ring Thickness (In.)5/64 x 5/64 x 3/16

Wrist Pin StyleFloating

QuantitySold individually

Piston MaterialCast aluminum

Package Qty1

Package TypeEA
