Product Discontinued
CLEVITE MAHLEPART NUMBER: 695-S2242007060

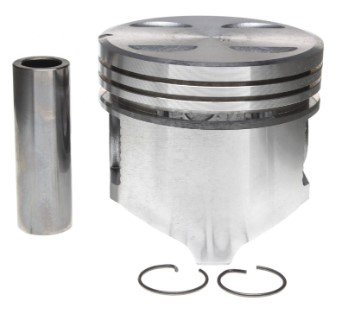

Single Piston for 1968-2001 Small Block Chrysler V8 318 ci. (5.2L) with 3.97 in. Bore (+.060 in.)
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chrysler
Single Piston1968-2001 Small Block Chrysler V8 318ci (5.2L) 3.970 in. Bore (+.060 in.) Flat Top with 4-Valve Reliefs Rings Not Included Sold Individually
Clevite Mahle S2242007060 Specifications:
- Material: Aluminum
- Bore: 3.97 in. (100.83mm)
- Compression Height: 1.741 in.
- Compression Ring Groove: 0.078 in. (5/64 in.)
- Second Ring Groove: 0.078 in. (5/64 in.)
- Oil Ring Groove Width: 0.188 in. (3/16 in.)
- Full Length: 3.43 in. (87.122mm)
- Pin Size: 0.984 in. O.D. (24.999mm)
- Pin Type: Press Fit
- Skirt Type: Non-Coated
- Piston Skirt Clearance: 0.002 in.
- Notes: Use Piston Ring p/n 695-40069CP.060
- Year Range and applicable VIN code: 1998-2000 "Y" ; 1999-2000 "T" ; 1998-2000 "2"
Part TypePiston
BrandCLEVITE MAHLE
Package Height5.1
Package Width5.4
Package Length5.6
Weight2.06 PG
Part CategoryReplacement Parts
QuantitySold individually
Piston MaterialAluminum
Vendor Part NumberS2242007060
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
