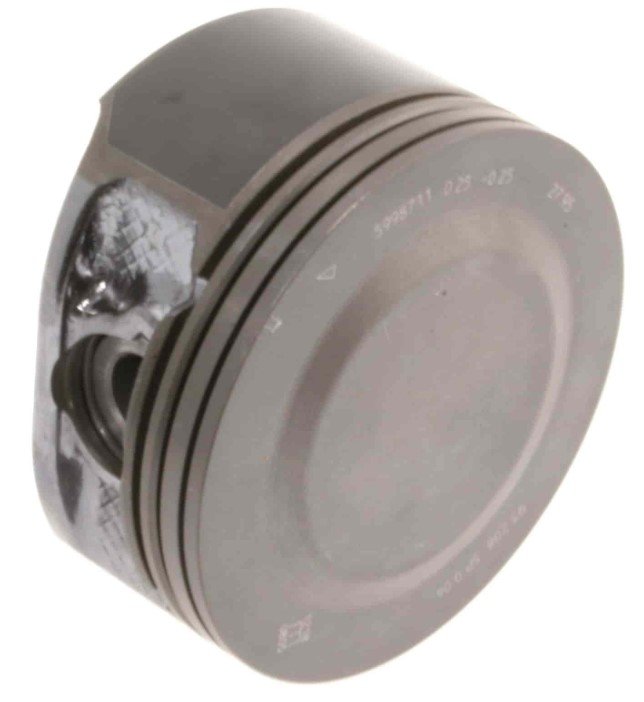

Single Piston for 2002-2008 GM L6 4.2L DOHC Engine [Std. Bore]

Name: Single Piston for 2002-2008 GM L6 4.2L DOHC Engine [Std. Bore]
Brand: CLEVITE MAHLE
SKU: 695-S2243448
Price: 66.99 USD
Availability: InStock

^$66⁹⁹

Ships on 09/14/2026

Lowest Price Guarantee

Single Piston

2002-2008 GM L6 4.2L DOHC Engine

3.661 in. (93 mm) Bore (Std.)

Reduced Compression

Sold Individually

Clevite Mahle S2243448 Single Piston:

Material: Aluminum
Bore: 3.66 in. (93 mm)
Compression Height: 1.640 in.
Compression Ring Groove: 1.200 mm
Second Ring Groove: 1.500 mm
Oil Ring Groove Width: 2.500 mm
Pin Size: .905 in. O.D.
Dome Height:0.093 in.
Compression Distance: 1.100 in.
Piston Type: 0.010 in. reduced compression with coated skirts

OE Quality Pistons

MAHLE Original is an American brand with one of the oldest pedigrees of supplying pistons, assemblies, cylinder liners, bearings, and valves for passenger and commercial vehicles worldwide. These piston and ring sets are cast from high temperature-resistant aluminum alloys for a high standard of excellence and performance. Designed to meet OE quality standards and even contain many premium features for an uncompromising quality not found elsewhere. Many manufacturers will even ask MAHLE to supply them with pistons for premium engine offerings. Whether you are rebuilding a project or replacing worn parts, MAHLE Original has the parts you need to get the job done.

MAHLE Original Piston Features

Pin Offset - Reduced engine noise
Compensated Ring Grooves - Assures proper ring loading and oil control
Expansion Controlled Designs - Tighter fitting clearances reduce engine noise, wear, emissions, and improve oil control in the long term.
Lightweight Design - Reduced reciprocating mass without sacrificing reliability. This reduces bearing loads, improves engine response, and makes a smoother running engine.

Part TypePiston

Product LineMAHLE Original Piston & Rings Sets

BrandCLEVITE MAHLE

Package Height4.0

Package Width4.0

Package Length4.37

Weight1.18 PG

QuantitySold individually

Piston MaterialCast aluminum

Package Qty1

Package TypeEA
