Vehicle Info NeededCLEVITE MAHLEPART NUMBER: 695-S2243449030

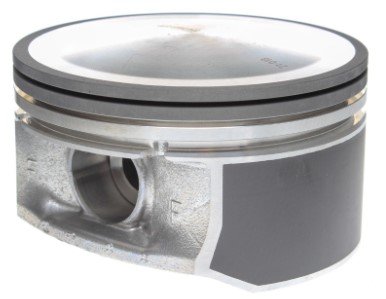

Single Piston for 2003-2008 Chrysler/Mopar Gen III Hemi 5.7L V8 w/3.950 in. Bore (+.030)
$5578
Ships on 09/15/2026
Lowest Price GuaranteeChrysler
Single Piston2003-2008 Chrysler/Mopar Gen III Hemi 5.7L V8 3.950 in. Bore (+.030) Dome Top w/0.157 in. Height Coated Skirt Reduced Compression Height (.010 in.) Rings Not Included Sold Individually
Clevite Mahle S2243449030 Single Piston Technical Specifications:
- Material: Aluminum
- Bore: 3.950 in.
- Compression Height: 1.2106 in. (This is a .010 in. reduced Compression Height.)
- Compression Ring Groove: 1.50 mm
- Second Ring Groove: 1.50 mm
- Oil Ring Groove Width: 3.00 mm
- Pin Size: 0.945 in. O.D. (24.0 mm)
- Skirt Type: Coated
- Piston Skirt Clearance: 0.002 in.
Clevite Mahle S2243449030 Single Piston Note:
- Year Range and applicable VIN code: 2003-2004 "D"
OE Quality Pistons
MAHLE Original is an American brand with one of the oldest pedigrees of supplying pistons, assemblies, cylinder liners, bearings, and valves for passenger and commercial vehicles worldwide. These piston and ring sets are cast from high temperature-resistant aluminum alloys for a high standard of excellence and performance. Designed to meet OE quality standards and even contain many premium features for an uncompromising quality not found elsewhere. Many manufacturers will even ask MAHLE to supply them with pistons for premium engine offerings. Whether you are rebuilding a project or replacing worn parts, MAHLE Original has the parts you need to get the job done.
Show More
MAHLE Original Piston Features
- Pin Offset - Reduced engine noise
- Compensated Ring Grooves - Assures proper ring loading and oil control
- Expansion Controlled Designs - Tighter fitting clearances reduce engine noise, wear, emissions, and improve oil control in the long term.
- Lightweight Design - Reduced reciprocating mass without sacrificing reliability. This reduces bearing loads, improves engine response, and makes a smoother running engine.
Part TypePiston
Product LineMAHLE Original Piston & Rings Sets
BrandCLEVITE MAHLE
Package Height4.4
Package Width4.5
Package Length4.8
Weight1.47 PG
Part CategoryReplacement Parts
QuantitySold individually
Piston MaterialAluminum
Piston StyleDome, with no valve reliefs
Vendor Part NumberS2243449030
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
