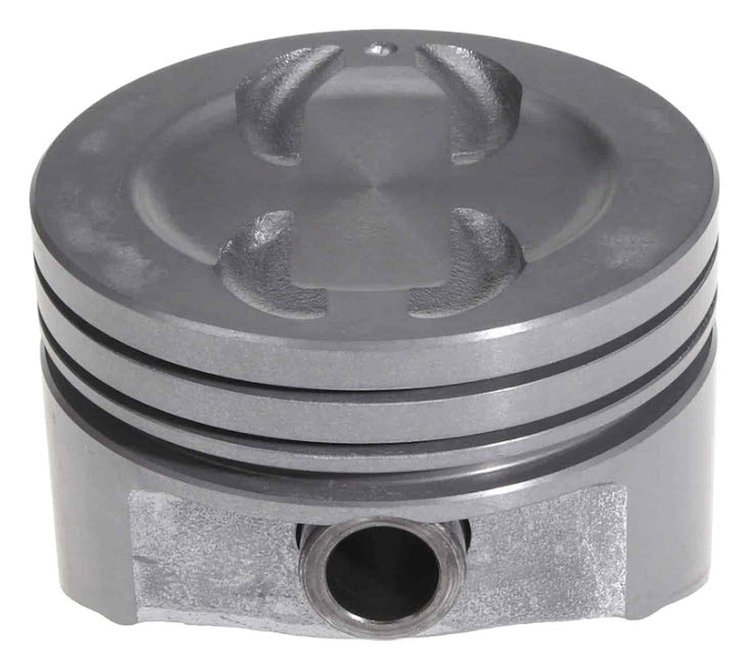

Single Piston for 1971-1995 Small Block Chevy 350ci (5.7L) with 4.020 in. Bore (+.020 in.)

Name: Single Piston for 1971-1995 Small Block Chevy 350ci (5.7L) with 4.020 in. Bore (+.020 in.)
Brand: CLEVITE MAHLE
SKU: 695-S2243544020
Price: 33.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Single Piston

1971-1995 Small Block Chevy 350ci (5.7L)

4.020 in. Bore (+.020 in.)

Dish with 4 Valve Reliefs

Rings Not Included

Sold Individually

Clevite Mahle S2243544020 Single Piston:

Material: Hypereutectic
Bore: 4.020 in.
Piston Top: Recessed Head w/4 Valve Reliefs; 0.1023 in. Recess Depth; w/2.767 in. diameter
Compression Height: 1.550 in.
Compression Ring Groove: 5/64 in.
Second Ring Groove: 5/64 in.
Oil Ring Groove Width: 3/16 in.
Pin Size: 0.927 in. O.D. (23.553mm)
Pin Type: Offset Location
Skirt Type: Non-Coated
Piston Skirt Clearance: 0.002 in.

OE Quality Pistons

MAHLE Original is an American brand with one of the oldest pedigrees of supplying pistons, assemblies, cylinder liners, bearings, and valves for passenger and commercial vehicles worldwide. These piston and ring sets are cast from high temperature-resistant aluminum alloys for a high standard of excellence and performance. Designed to meet OE quality standards and even contain many premium features for an uncompromising quality not found elsewhere. Many manufacturers will even ask MAHLE to supply them with pistons for premium engine offerings. Whether you are rebuilding a project or replacing worn parts, MAHLE Original has the parts you need to get the job done.

MAHLE Original Piston Features

Pin Offset - Reduced engine noise
Compensated Ring Grooves - Assures proper ring loading and oil control
Expansion Controlled Designs - Tighter fitting clearances reduce engine noise, wear, emissions, and improve oil control in the long term.
Lightweight Design - Reduced reciprocating mass without sacrificing reliability. This reduces bearing loads, improves engine response, and makes a smoother running engine.

Part TypePiston

Product LineMAHLE Original Piston & Rings Sets

BrandCLEVITE MAHLE

Package Height5.3

Package Width5.4

Package Length5.7

Weight1.82 PG

Part CategoryReplacement Parts

QuantitySold individually

Piston MaterialHypereutectic

Piston StyleDish, with four valve reliefs

Bore4.2 in (106.68 mm)
