Vehicle Info NeededCLEVITE MAHLEPART NUMBER: 695-S2243547040

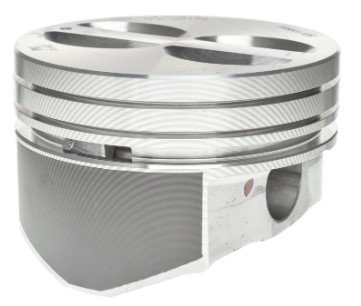

Single Piston for 1969-1990 Small Block Chevy V8 350 ci (5.7L) with 4.040 in. Bore (+.040 in.)
$4699
2 left in stock
Ships on Sep 14, 2026
Lowest Price GuaranteeGM
Single Piston1969-1990 | Small Block Chevy V8 350 ci. (5.7L) 4.040 in. Bore (+.040 in.) Flat Top with 4 Valve Reliefs Coated Skirt Rings Not Included Sold Individually
Clevite Mahle S2243547040 Technical Specs:
- Material: Hypereutectic
- Bore: 4.040 in. (102.6mm)
- Piston Top: Flat Top w/4 Valve Reliefs
- Compression Height: 1.55 in.
- Compression Ring Groove: 5/64 in.
- Second Ring Groove: 5/64 in.
- Oil Ring Groove Width: 3/16 in.
- Full Length: 2.605 in. (66.167mm)
- Pin Size: 0.927 in.O.D. (23.553mm)
- Pin Type: Fixed, Offset Location
- Skirt Type: Coated
- Piston Skirt Clearance: 0.002 in.
- Year Range and applicable VIN code: CAR - 1969-71 "-", 1972-74 "J" "K", 1974 "T", 1976 "V", 1976-77 "X", 1972-74 1978 "H", 1972 1974-78 "L", 1980-81 1983-88 "6", 1979-80 1985-90 "8"; TRUCK - 1969-71 "-", 1969-72 "E", 1971 "A" "B", 1972 "J", 1974 "W", 1972-74 "H", 1973-75 "Y", 1973-76 "V", 1980 "P", 1974-86 "L", 1979-88 "M", 1971 1973 1987-90 "K", 1980-90 "A", 1974 "V" "W" "Y"
Part TypePiston
BrandCLEVITE MAHLE
Package Height4.0
Package Width4.0
Package Length4.37
Weight1.54 PG
Part CategoryReplacement Parts
Wrist Pin StylePress-fit
QuantitySold individually
Piston MaterialHypereutectic aluminum
Piston StyleFlat top, with four valve reliefs
Vendor Part NumberSINGLE PISTON
Package Qty1
Package TypeEA
