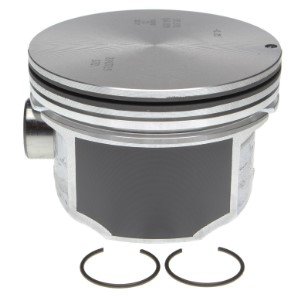

Single Piston for 2005-2009 GM LS 4.8, 5.3L V8 w/3.80 in. (96.50 mm) Bore (+.50 mm)
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Clevite Mahle S2243729050M Single Piston Technical Specifications:
- Bore: 3.80 in. (96.50 mm) +50 mm
- Piston Top: Flat Top
- Compression Ring Groove: 1.500 mm
- Second Ring Groove: 1.500 mm
- Oil Ring Groove Width: 3.00 mm
- Pin Type: Floating
- Skirt Type: Coated
Clevite Mahle S2243729050M Note:
- Use Piston Ring 41859CP.020 (Sold Separately)
OE Quality Pistons
MAHLE Original is an American brand with one of the oldest pedigrees of supplying pistons, assemblies, cylinder liners, bearings, and valves for passenger and commercial vehicles worldwide. These piston and ring sets are cast from high temperature-resistant aluminum alloys for a high standard of excellence and performance. Designed to meet OE quality standards and even contain many premium features for an uncompromising quality not found elsewhere. Many manufacturers will even ask MAHLE to supply them with pistons for premium engine offerings. Whether you are rebuilding a project or replacing worn parts, MAHLE Original has the parts you need to get the job done.
Show More
MAHLE Original Piston Features
- Pin Offset - Reduced engine noise
- Compensated Ring Grooves - Assures proper ring loading and oil control
- Expansion Controlled Designs - Tighter fitting clearances reduce engine noise, wear, emissions, and improve oil control in the long term.
- Lightweight Design - Reduced reciprocating mass without sacrificing reliability. This reduces bearing loads, improves engine response, and makes a smoother running engine.
