Vehicle Info NeededCLOYESPART NUMBER: 220-9-3635X9-10

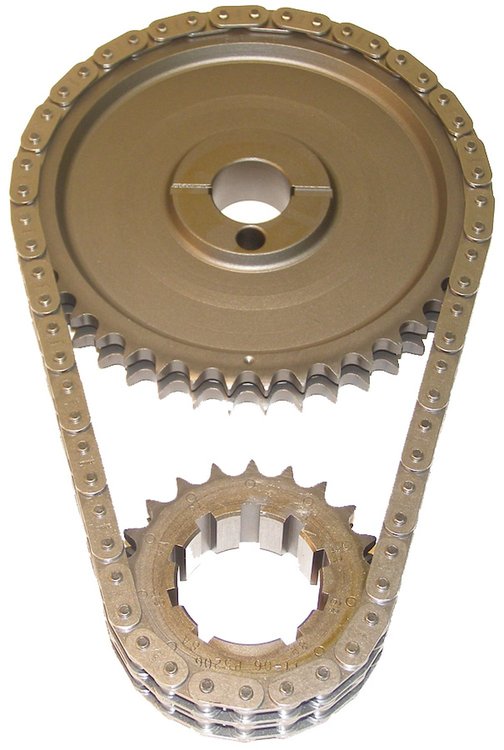

9-3635X9-10 High-Performance Timing Set
$14154$148.99You Save$7.45
Ships on 09/08/2026
Lowest Price GuaranteeFord
High-Performance Timing SetRoller: Yes Cam Sprocket Material: Steel Keyway Adjustable: Yes Max Advance @ Cam: 4 DD Max Retard @ Cam: 4 DD Chain Type: Double Roller Crankshaft Sprocket Material: Steel Sprockets Included: Yes
Cloyes 9-3635X9-10 Features:
Billet Crankshaft Sprocket Has Nine Keyways for +/- 8 Degrees Adjustability. Both Billet Steel Sprockets are Heat Treated for Durability. TRUE Roller 0.250" Roller Diameter Chain for Reduced Friction. 3-Piece Sets Hand-Matched to Qualify the Correct Center Distance and Minimize Runout.
- The complete kits, which meet or exceed OEM performance requirements, ensure a quiet and maintenance-free experience
- Cloyes parts are CAD designed and manufactured using premium materials. Each part is extensively tested and measured for function, fitment, and durability to ensure optimal performance
- Cloyes Timing Kits may include camshaft sprockets, crankshaft sprockets, timing chains, tensioners, and guides
- Refer to our online catalog for detailed application-specific information
- Keep your engine's valve train in perfect time with Cloyes, the world leader in timing drive systems.
Street Billet True Roller Timing Sets
- Unmatched quality, adjustability, and value
- Durable billet steel cam sprockets CNC'd to eliminate inconsistencies
- 9-keyway induction hardened crank sprocket
- Cloyes .250" True Roller Chain offers superior strength
Show More
Race Billet True Roller Timing Sets
- Race ready and hand-matched by Cloyes to qualify center distance and runout
- Durable billet steel cam sprockets CNC'd to eliminate inconsistencies
- 9-keyway induction hardened crank sprocket
- Cloyes .250" True Roller Chain offers superior strength
- Side plates cut from high-strength steel and heat-treated for maximum fatigue resistance
- Sets for Chevy (non-factory roller) and big block Chrysler include a captured needle bearing
Part TypeTiming Set
Product LineCloyes Billet True Roller 9-Keyway Timing Sets
BrandCLOYES
Package Height2.0
Package Width7.5
Package Length7.5
Weight3.25 PG
Part CategoryPerformance Parts
Camshaft Sprocket MaterialSteel
Sprockets IncludedYes
RollerYes
Timing Chain TypeDouble Roller
Crankshaft Sprocket MaterialSteel
Part FitmentSemi Universal
Keyway AdjustableYes
Engine Make/SizeFord 221-351W
Maximum Retard At Camshaft4 DD
Maximum Advance At Camshaft4 DD
Grade TypePerformance
Vendor Part Number9-3635X9-10
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
