Vehicle Info NeededCLOYESPART NUMBER: 220-9-3710Z

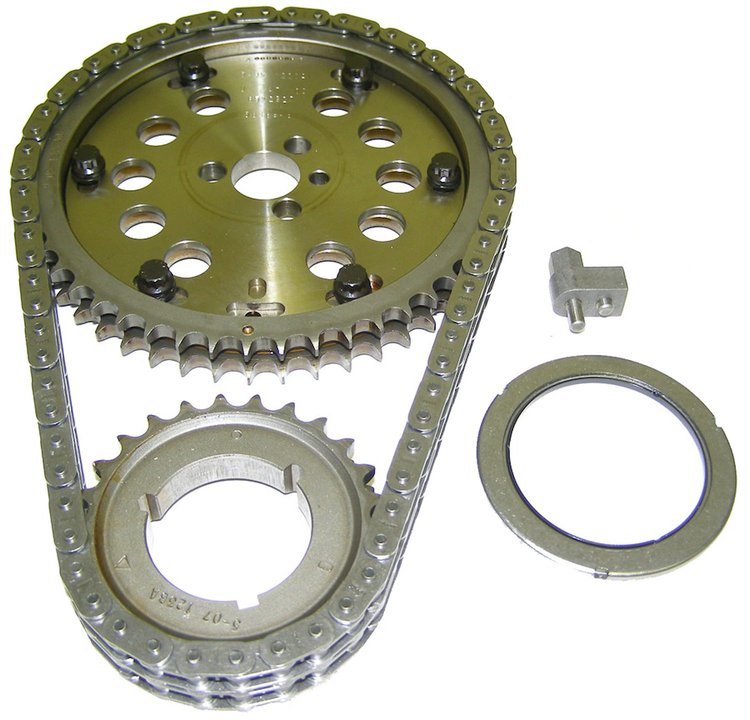

9-3710Z Quick Adjust Timing Set w/Z-Racing Chain 1965-1996 Big Block Chevy Engines
$32584$342.99You Save$17.15
Ships on 09/14/2026
Lowest Price GuaranteeBig Block Chevy
Quick Adjust Timing Set1965-1996 Big Block Chevy Engines High-Strength Z-Racing Chain Quick +/- 6 Degrees of Adjustment 3 Keyway Crank Sprocket Thrust Bearing Included Sold as a Set
9-3710Z Features:
- "Z" chain brings significantly more strength, reduced stress and fractures under load, with 0.250 in. Diameter Rollers
- Press-fit center links reduce load spikes across the chain
- Patented Quick Adjust Allows Plus/Minus 6 Degrees
- Induction Hardened Billet Steel Sprockets and Thrust Bearing
- 3 Keyway Crank Offers More Adjustment Capability
- Cold-Rolled And Hardened To Exact Standards
- Increased Load and RPM Capabilities
- Each Set Is Custom Hand-Matched At Cloyes Factory
Direct replacement for NAPA 93710Z
Part TypeTiming Set
BrandCLOYES
Package Height2.0
Package Width7.5
Package Length7.5
Weight3.64 PG
Part CategoryPerformance Parts
Chain IncludedYes
Thrust Bearing IncludedNo
Crank Sprocket MaterialBillet steel
Cam Sprocket IncludedYes
QuantitySold as a set
Cam Sprocket MaterialBillet steel
Chain MaterialHigh-Strength, Heat-Treated Steel
Bolts/Studs IncludedNo
Crank Sprocket IncludedYes
Gaskets IncludedNo
Offset Bushings IncludedNo
Timing Chain StyleDouble roller
Maximum Advance/Retard At Camshaft6 degree
Package Qty1
Package TypeEA
