Vehicle Info NeededCOLD CASE RADIATORSPART NUMBER: 359-CHC547ASK

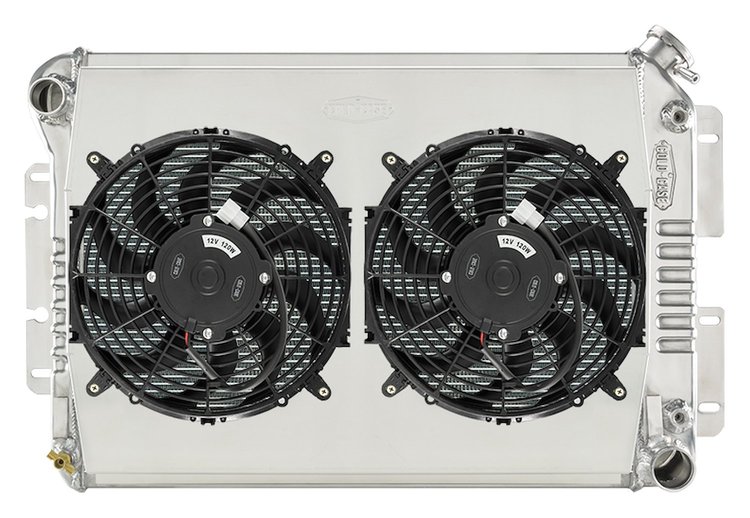

Aluminum Performance Radiator with Fan and Shroud Kit 1967-1969 GM F-Body with GM LS Swap Engine
$71454
Ships on 09/15/2026
Lowest Price GuaranteeGM F-Body
Aluminum Performance Radiator, Fan and Shroud Kit1967-1969 GM F-Body with GM LS Swap EngineIncludes:
- 2-Row Performance Aluminum Radiator
- Dual 12 in. Electric Fans
- Aluminum Fan Shroud
Cold Case CHC547ASK
Features:
- 100% TIG-welded construction
- (2) 1.250 in. crossflow cooling rows
- Polished OE-style end tanks
- Corrugated cooling fins provide a larger surface area and better thermal heat transfer - (16) fins per inch
- The dual cooling fans flow 2,200 cfm each
- Upper hose size: 1.220 in.
- Lower hose size: 1.350 in.
- For use with an external transmission cooler
Notes:
- Also fits 1968-1971 Chevy Nova big block engine models with bracket-style mounted radiators
- Radiator cap and dual fan wiring harness Not included
CHC547ASK supersedes RPE547AK
Part TypeRadiator
BrandCOLD CASE RADIATORS
Package Height16.0
Package Width26.0
Package Length36.0
Weight48.0 PG
Part CategoryPerformance Parts
Overall Thickness6.25 in (158.8 mm)
Overall Height19 in (482.6 mm)
Radiator Cap IncludedNo
Shroud MaterialAluminum
Outlet Quantity1
Inlet LocationPassenger Side
Core Width23 in (584.2 mm)
Row Quantity2
Overall Width30 in (762 mm)
Tube Size1.25 in (31.8 mm)
Radiator FinishPolished
Inlet Quantity1
Transmission CoolerNo
Maximum Fan Cfm2,200 cfm
Shroud ColorNatural
Radiator StyleCrossflow
Fan Quantity2
Radiator MaterialAluminum
Drain Valve IncludedYes
QuantitySold as a kit
Core Height16.85 in (427.99 mm)
Fan Diameter12 in (304.8 mm)
Mounting Brackets IncludedYes
Outlet LocationPassenger side
Fan IncludedYes
Vendor Part NumberCHC547ASK
Package Qty1
Package TypeEA
