Vehicle Info NeededCOLD CASE RADIATORSPART NUMBER: 359-CHE541K

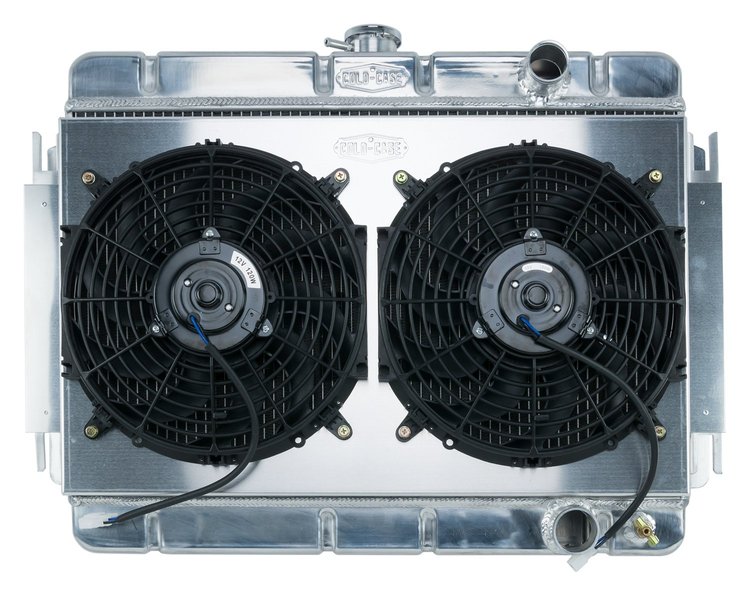

Aluminum Performance Radiator with Fan 1964-1965 Chevy Chevelle
$68054
2 left in stock
Ships Today
Lowest Price GuaranteeChevy Chevelle
Aluminum Performance Radiator1964-1965 Chevy Chevelle Manual Transmission Includes Electric Fan & Shroud Kit 15.120 in. H x 24.720 in. W x 3 in. D
Cold Case Radiators CHE541K Features:
64-65 Chevelle / El Camino Aluminum Radiator And Dual 12 Inch Fan Kit MT. MT Transmission. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.100 percent TIG weldedFan Diameter 12 InchAll AluminumPolished OE style tanks(2) 1.25 inch Tubes16 fins per inchCorrugated fins that give more surface area and more thermal transferPressure testedFor manual/standard transDirect fitment for 64-65 Chevelle/El CaminoOld Part Number: RPE541KRadiator SpecsCore Height 15.12 inchCore Width 24.72 inchOverall Height 20.125 inchOverall Width 27.75 inchOverall Thickness 6 inchUpper Hose 1.57 inchLower Hose 1.77 inchTubes (2) 1.25 inch TubesPart TypeRadiator
BrandCOLD CASE RADIATORS
Package Height16.0
Package Width26.0
Package Length36.0
Weight48.0 PG
Part CategoryPerformance Parts
Overall Thickness3 in (76.2 mm)
Overall Height20.125 in (511.2 mm)
Outlet Size1.75 in (44.5 mm)
Radiator Cap IncludedYes
Radiator MaterialAluminum
Inlet Size (In.)1.5
Core Height15.125 in (384.175 mm)
Core Width24.75 in (628.65 mm)
Row Quantity2
Overall Width27.75 in (704.9 mm)
Tube Size1.25 in (31.8 mm)
Fan IncludedYes
Transmission CoolerNo
Part FitmentSemi Universal
Radiator StyleDownflow
Vendor Part NumberCHE541K
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
