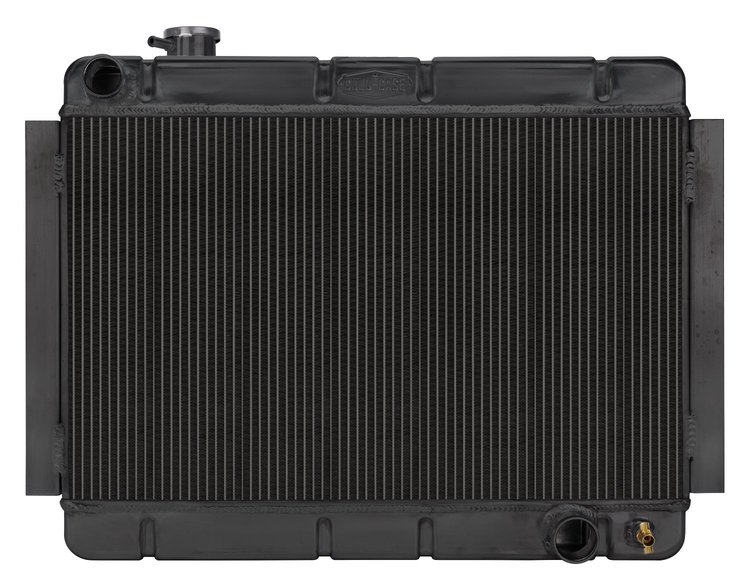

Cold Case Radiators CHE542B Features:

1966-1967 Chevrolet Chevelle/El Camino Aluminum Performance Radiator. MT Transmission Night Rider Black Series. This is the most popular configuration with an offset filler and upper inlet on the far driver side. 25 in. wide core with AC applications but will fit all V8. Night Rider Black series radiators blend performance with original appearance to give you the best of both worlds. You will be hard pressed to find a difference between an original versus a Cold-Case. These Cold-Case radiators are Tig welded 100 percent aluminum and feature OEM appearing stamped tanks. Perfect for that restored car wanting the appearance of stock without sacrificing performance.

• 100 percent TIG welded
• All Aluminum Powder Coated Black
• OE style tanks
• (2) 1.25 in. Tubes
• 16 fins per in.
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For manual/standard trans
• Direct fitment for 66-67 Chevelle/El Camino
• Works with original fan shroud
• Core Height 15.4 in.
• Core Width 24.7 in.
• Overall Height 20.5 in.
• Overall Width 27.75 brackets in.
• Overall Thickness 3 in.
• Tubes (2) 1.25 in. Tubes
• Upper Hose 1.57 in.
• Lower Hose 1.77 in.
