Vehicle Info NeededCOLD CASE RADIATORSPART NUMBER: 359-CHI566A

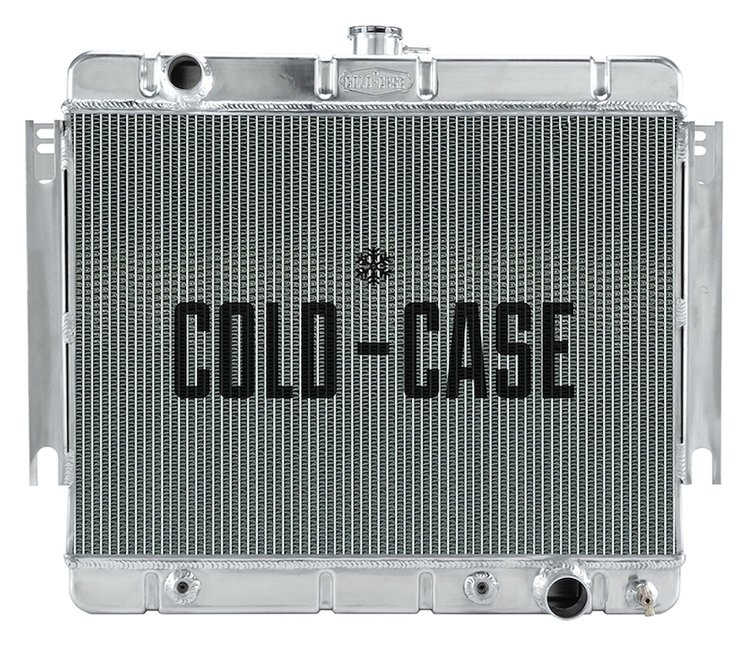

Aluminum Performance Radiator 1966-1968 Chevy Impala
$41754
1 left in stock
Ships on Sep 08, 2026
Lowest Price GuaranteeChevy Impala
Aluminum Performance Radiator1966-1968 Chevy Impala Automatic Transmission 17.500 in. H x 25.100 in. W x 3 in. D
Cold Case Radiators CHI566A Features:
1966-1967 Chevy Impala Aluminum Performance Radiator. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.100 percent TIG weldedAll AluminumPolished OE style tanks(2) 1.25 inch Tubes16 fins per inchCorrugated fins that give more surface area and more thermal transferPressure testedFor auto/maunal transDirect fitment for 66-67 ImpalaRadiator SpecsCore Height 17.5 inchCore Width 25.1 inchOverall Height 23.5 inchOverall Width 28.75 inchOverall Thickness 3 inchTubes (2) 1.25 inch TubesUpper Hose 1.50 inchLower Hose 1.77 inchOld Part Number: RPE566Will fit in a 1961-1965 impala as well. Water neck and upper hose needs to be swapped for a 66-68 style to fit. This option is a good one for those looking for maximum cooling as upper LH and lower RH inlet/outlet is much more efficient than upper and lower being on the same side.Part TypeRadiator
BrandCOLD CASE RADIATORS
Package Height6.9
Package Width25.4
Package Length31.25
Weight26.72 PG
Part CategoryPerformance Parts
Overall Thickness3 in (76.2 mm)
Overall Height23.5 in (596.9 mm)
Outlet Size1.75 in (44.5 mm)
Radiator Cap IncludedYes
Radiator MaterialAluminum
Inlet Size (In.)1.5
Core Height17.5 in (444.5 mm)
Core Thickness3 in (76.2 mm)
Core Width25.125 in (638.175 mm)
Row Quantity2
Overall Width28.75 in (730.3 mm)
Tube Size1.25 in (31.8 mm)
Fan IncludedNo
Transmission CoolerYes
Radiator StyleDownflow
Vendor Part NumberCHI566A
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
