Vehicle Info NeededCOLD CASE RADIATORSPART NUMBER: 359-CHN540

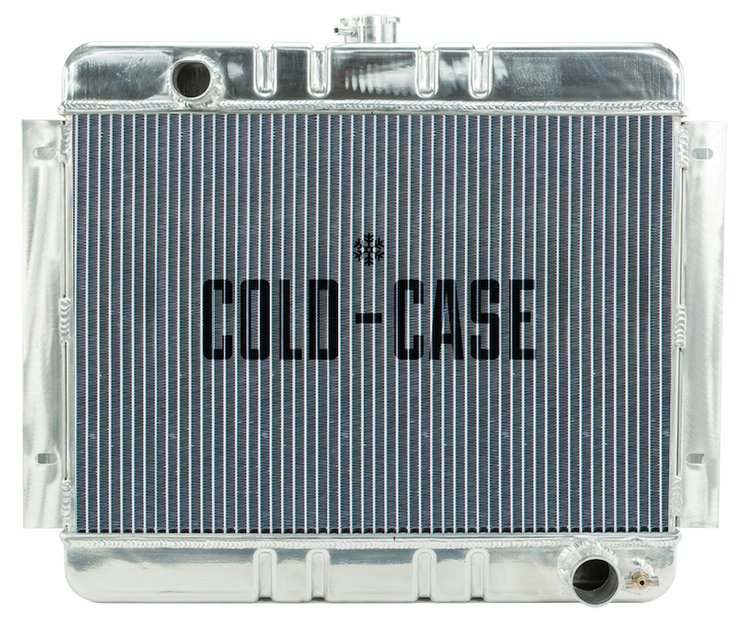

Aluminum Performance Radiator 1962-1967 Chevy Nova
$42254
1 left in stock
Ships on Sep 08, 2026
Lowest Price GuaranteeChevy Nova
Aluminum Performance Radiator1962-1967 Chevy Nova Manual Transmission 15.350 in. H x 22.350 in. W x 3 in. D
Cold Case Radiators CHN540 Features:
1962-1967 Chevrolet Nova Aluminum Performance Radiator. MT Transmission. Will also fit Inline 6 applications with flat fronted fan. Very limited clearance if using our fan/shroud combo. Will have to push motor back and use short water pump. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.100 percent TIG weldedAll AluminumPolished OE style tanks(2) 1.25 inch Tubes16 fins per inchCorrugated fins that give more surface area and more thermal transferPressure testedFor manual/standard transDirect fitment for 62-67 NovaOld Part Number: RPE540Radiator SpecsCore Height 15.35 inchCore Width 22.35 inchOverall Height 20.7 inchOverall Width 22.35 inchOverall Thickness 3 inchTubes (2) 1.25 inch TubesUpper Hose 1.50 inchLower Hose 1.77 inchPart TypeRadiator
BrandCOLD CASE RADIATORS
Package Height7.4
Package Width23.7
Package Length28.4
Weight21.99 PG
Part CategoryPerformance Parts
Overall Thickness3 in (76.2 mm)
Overall Height20.75 in (527.1 mm)
Outlet Size1.75 in (44.5 mm)
Radiator Cap IncludedYes
Radiator MaterialAluminum
Inlet Size (In.)1.5
Core Height15.25 in (387.35 mm)
Core Width22.25 in (565.15 mm)
Row Quantity2
Overall Width22.375 in (568.3 mm)
Tube Size1.25 in (31.8 mm)
Fan IncludedNo
Transmission CoolerNo
Part FitmentSemi Universal
Radiator StyleDownflow
Vendor Part NumberCHN540
Package Qty1
Package TypeEA
