Product Discontinued
COLD CASE RADIATORSPART NUMBER: 359-CHN540K

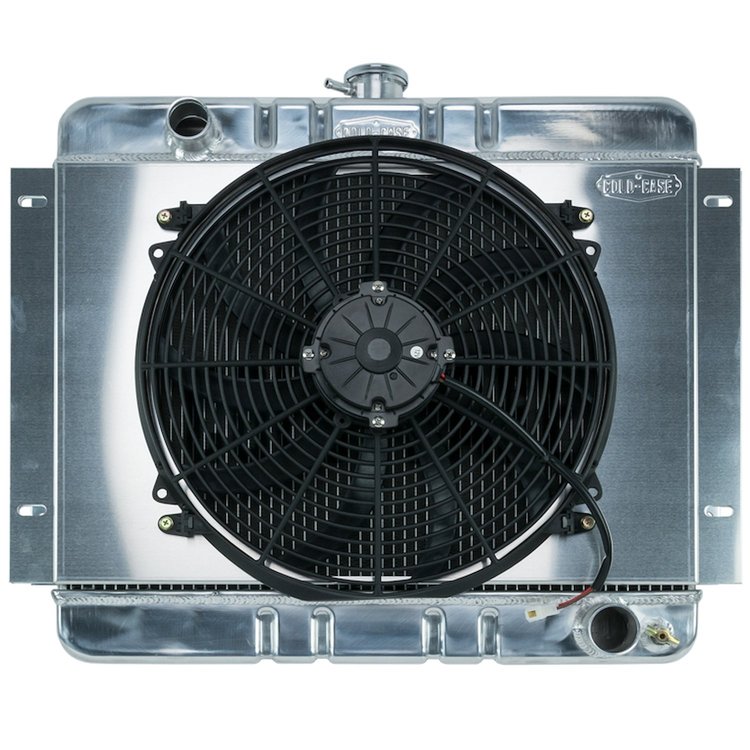

Aluminum Performance Radiator with Fan 1962-1967 Chevy Nova
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy Nova
Aluminum Performance Radiator1962-1967 Chevy Nova Manual Transmission Includes Electric Fan & Shroud Kit 15.350 in." H x 22.350 in. W x 3 in. D
Cold Case Radiators CHN540K Features:
62-67 Chevy Nova Aluminum Radiator And 16 Inch Fan Kit MT Transmission. Will also fit Inline 6 applications with flat fronted fan. Very limited clearance if using our fan/shroud combo. Will have to push motor back and use short water pump. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.100 percent TIG weldedFan Diameter 16 InchAll AluminumPolished OE style tanks(2) 1.25 inch Tubes16 fins per inchCorrugated fins that give more surface area and more thermal transferPressure testedFor manual/standard transDirect fitment for 62-67 NovaOld Part Number: RPE540KRadiator SpecsCore Height 15.35 inchCore Width 22.35 inchOverall Height 20.7 inchOverall Width 22.35 inchOverall Thickness 3 inchTubes (2) 1.25 inch TubesUpper Hose 1.50 inchLower Hose 1.77 inchPart TypeRadiator
BrandCOLD CASE RADIATORS
Package Height15.0
Package Width26.0
Package Length29.0
Weight33.75 PG
Part CategoryPerformance Parts
Overall Thickness3 in (76.2 mm)
Overall Height20.75 in (527.1 mm)
Outlet Size1.75 in (44.5 mm)
Radiator Cap IncludedYes
Radiator MaterialAluminum
Inlet Size (In.)1.5
Core Height15.25 in (387.35 mm)
Core Width22.25 in (565.15 mm)
Row Quantity2
Overall Width22.375 in (568.3 mm)
Tube Size1.25 in (31.8 mm)
Fan IncludedYes
Transmission CoolerNo
Radiator StyleDownflow
Vendor Part NumberCHN540K
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
