Vehicle Info NeededCOLD CASE RADIATORSPART NUMBER: 359-CHT562AK

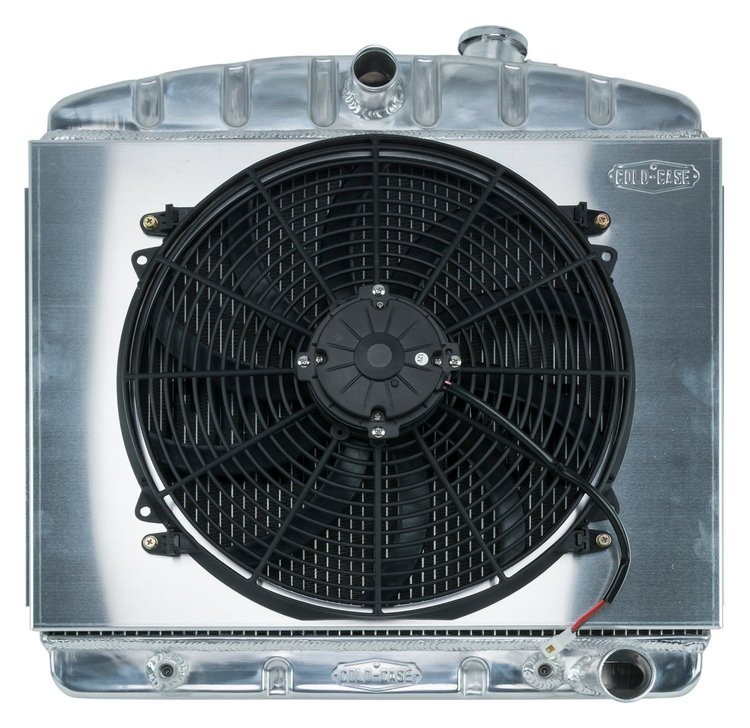

Aluminum Performance Radiator with Fan 1955-1957 Full Size Chevy
$65254
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeChevy Full Size
Aluminum Performance Radiator1955-1957 Full Size Chevy V8 Mounts Behind Radiator Support Automatic Transmission Includes Electric Fan & Shroud Kit 17 in. H x 22 in. W x 3 in. D
Cold Case Radiators CHT562AK Features:
55-57 Tri-5 Chevy Aluminum Radiator And 16 Inch Fan Kit (V8 Mount). V8 Position cars for mount Behind radiator support. There is not enough space to put a clutch fan on the front of a SB and still mount the radiator in the V8 position. There is a 6 blade stationary and 7 blade flex fan you can use though.These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.100 percent TIG weldedFan Diameter 16 InchAll AluminumPolished OE style tanks16 fins per inchCorrugated fins that give more surface area and more thermal transferPressure testedFor manual/auto transDirect fitment for 55-57 Chevy (V8 position mount)Old Part Number: RPE562KRadiator SpecsCore Height 17 inchCore Width 22 inchOverall Height 23.5 To CapOverall Width 23.5 inchOverall Thickness 3 inchTubes (2) 1.25 inch TubesUpper Hose 1.50 inchLower Hose 1.77 inchPart TypeRadiator
BrandCOLD CASE RADIATORS
Package Height16.0
Package Width26.0
Package Length36.0
Weight48.0 PG
Part CategoryPerformance Parts
Overall Thickness3 in (76.2 mm)
Overall Height23.5 in (596.9 mm)
Outlet Size1.75 in (44.5 mm)
Radiator Cap IncludedYes
Radiator MaterialAluminum
Inlet Size (In.)1.5
Core Height17 in (431.8 mm)
Core Width22 in (558.8 mm)
Row Quantity2
Overall Width23.5 in (596.9 mm)
Tube Size1 in (25.4 mm)
Fan IncludedYes
Transmission CoolerYes
Part FitmentSemi Universal
Radiator StyleDownflow
Vendor Part NumberCHT562AK
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
