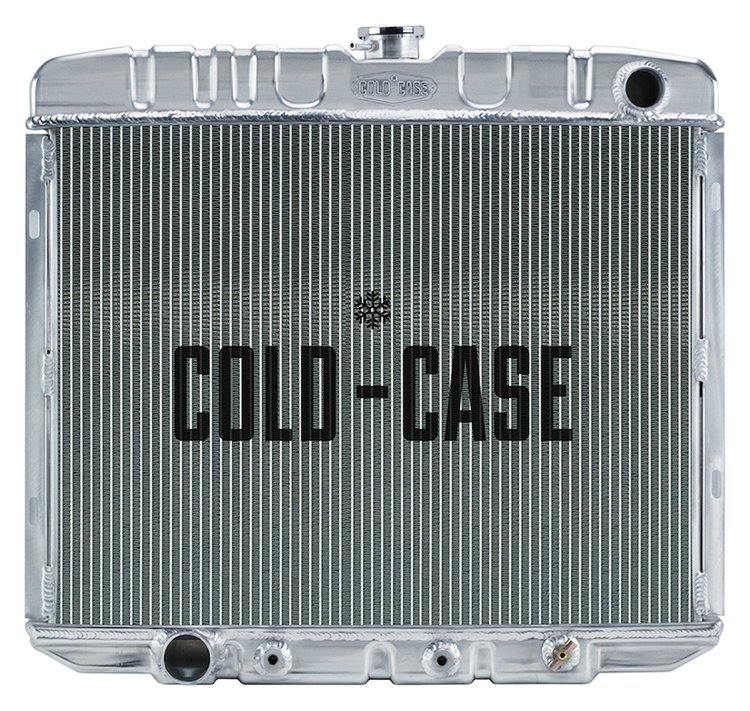

1966-1967 Ford Fairlane Big Block Aluminum Performance Radiator. AT Cars. This radiator is correct for only the 1967 model. 1966 owners must obtain a 67 top bracket for proper fitment. Also, the lower rubber insulators may need some trimming for proper fitment. These COLD-CASE radiators are Tig-welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4-row aluminum radiator! It doesn't cool as good as these oversized 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference between an original versus a COLD-CASE.

Cold Case Radiators FOF585A Features:

• 100% TIG welded
• All aluminum construction
• Polished OE-style tanks
• 16 fins per inch
• Corrugated fins for increased surface area and improved thermal transfer
• Pressure tested for reliability
• Designed for automatic transmissions
• Direct fitment for 1966–1967 Fairlane with Big Block

Cold Case Radiators FOF585A Specs:

• Core Height: 16 in.
• Core Width: 24 in.
• Overall Height: 21.5 in.
• Overall Width: 25.5 in.
• Overall Thickness: 3 in.
• Upper Hose: 1.5 in.
• Lower Hose: 1.75 in.
• Tubes: (2) 1 in. tubes
• Transmission Cooler Fitting: 1/8 in. National Pipe Thread (NPT)
