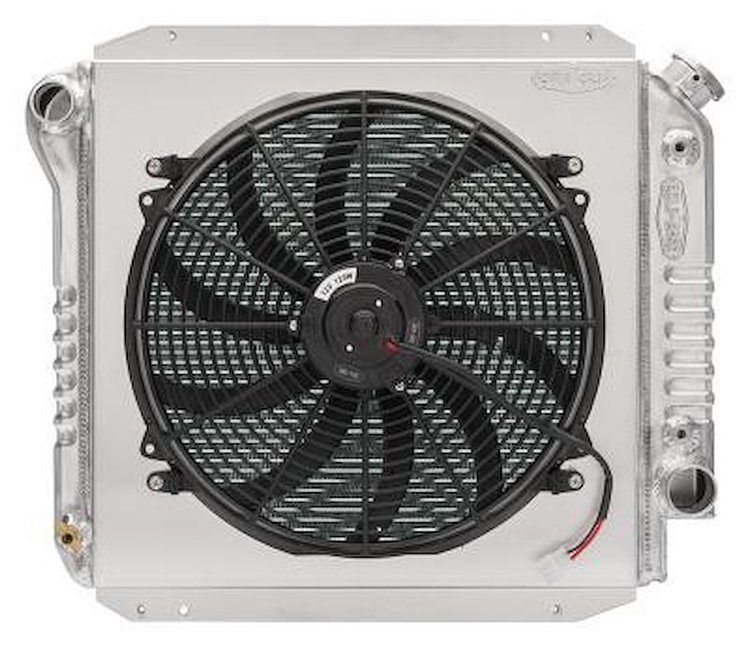

Cold Case Radiators FOT574A-1K Features:

1966-1977 Ford Bronco Aluminum Performance Radiator with thinner core with 16 in. Fan and Shroud Kit. These COLD-CASE radiators are Tig-welded 100 percent aluminum and absolutely beautiful. This is the same radiator as FOT574A, but with two 1 in. cores. The 1 in. core design allows for more room from the radiator to the water pump.

• 100 percent TIG welded
• All Aluminum
• Polished OE style tanks
• (2) 1.00 in. Tubes
• 16 fins per in.
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For auto/manual trans
• Core Height 18.5 in.
• Core Width 19.2 in.
• Overall Height 20.2 in.
• Overall Width 24.75 in.
• Overall Thickness 6.5 in.
• Tubes (2) 1 in. Tubes
• Trans Cooler Fitting Size: 1/8 in.
