Vehicle Info NeededCOLD CASE RADIATORSPART NUMBER: 359-GMA546ASK

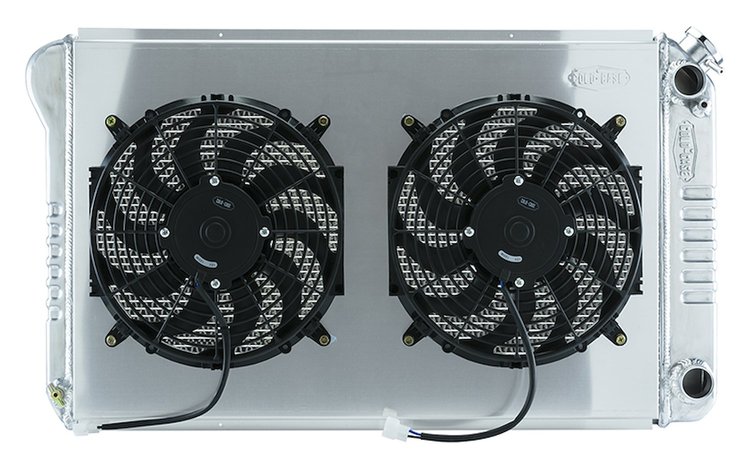

GMA546ASK Aluminum Performance Radiator with Dual 14 in. Fans 1968-1977 GM A-Body LS Swap
$82054
2 left in stock
Ships Tomorrow
Lowest Price GuaranteeGM A-Body
Aluminum Performance Radiator with Dual 14 in. Fans1968-1977 GM A-Body LS Swap Includes: Radiator, Electric Fan, & Shroud Kit 18.400 in. H x 28.500 in. W x 3 in. D Aluminum Polished Silver Finish
Cold Case Radiators GMA546ASK Features:
1968-1977 GM A-Body with LS Swap Aluminum Performance Dual Flow Radiator and 14-inch fan kit. Meant to be used with an external trans cooler.When you need the biggest and best, look no further than the Cold Case Super Duty Line. All Super Duty kits include 2 row radiators with 1.25-inch tubes, aluminum fan shroud, and dual 14 Inch fans, flowing at 1800 cfm per fan! For extreme horsepower applications OR if you just want the best of the best...These COLD-CASE radiators are Tig welded 100 percent aluminum and are beautiful. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard-pressed to find a difference over an original versus a COLD-CASE.- 100 percent TIG welded
- Fan Diameter 12 Inch
- All Aluminum(2) 1.25-inch Tubes
- Polished OE-style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- Dual Flow Design
- Direct fitment for 68-77 A-Body LS Swaps
- Core Height: 18.4 inch
- Core Width: 28.5 inch
- Overall Height: 18.82 inch
- Overall Width: 34.21 inch
- Overall Thickness: 3 inch
- Upper Hose: 1.25 inch
- Lower Hose: 1.5 inch
- Tubes: (2) 1.25-inch Tubes
Ready-Fit GM Radiators
Cold Case high-quality replacement radiators for GM vehicles have two oversized rows that perform just as well as traditional 3 or 4 row radiators. Each ready-fit aluminum radiator is made to factory specs, TIG-welded, and features OEM stamping. When replacing your radiator, Cold Case will keep your GM car or truck engine running cool.
Part TypeRadiator
Product LineCold Case Aluminum Radiators for GM Vehicles
BrandCOLD CASE RADIATORS
Package Height16.0
Package Width26.0
Package Length36.0
Weight48.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberGMA546ASK
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
