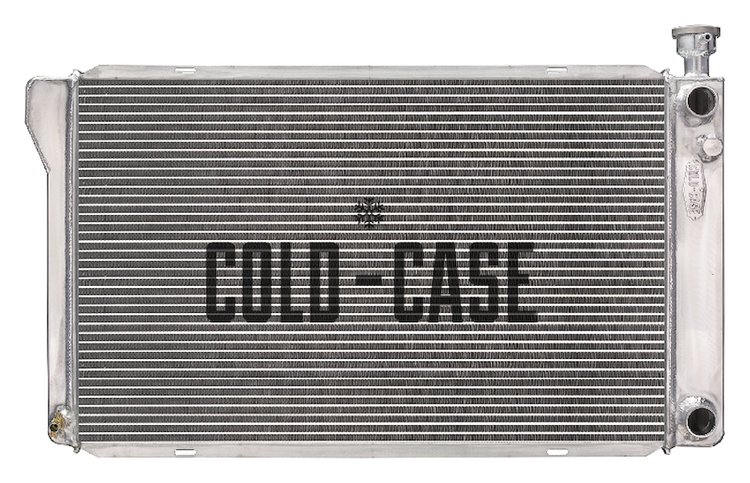

GMT580 Aluminum Radiator for 1988-1998 Chevy, GMC 1500 Trucks, SUVs w/GM Gen III/IV LS Engine
InfoVehicle Info Needed
COLD CASE RADIATORSPART NUMBER: 359-GMT580

GMT580 Aluminum Radiator for 1988-1998 Chevy, GMC 1500 Trucks, SUVs w/GM Gen III/IV LS Engine

$49154
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

GM Trucks
Aluminum High-Performance Radiator
  • 1988-1998 Chevy, GMC 1500 Trucks, SUVs
  • GM Gen III/IV LS Engine Swap
  • For Standard Transmission
  • Requires Remote Cooler for Automatic Transmission
  • 100-Percent TIG Welded
  • All-Aluminum
  • Polished Tanks

    Cold Case GMT580 Aluminum High-Performance Radiator:

    • 100% TIG welded
    • All aluminum construction
    • Polished tanks
    • 16 fins per inch
    • Corrugated fins for increased surface area and improved thermal transfer
    • Pressure tested for reliability
    • Perfect for LS-swapped 1988–1998 GM trucks

    Cold Case GMT580 Aluminum High-Performance Radiator Specs:

    • Core Height: 17.65 in.
    • Core Width: 28.5 in.
    • Overall Height (to cap): 20.4 in.
    • Overall Width: 33.85 in.
    • Overall Thickness: 3 in.
    • Tubes: (2) 1.25 in. tubes
    • Upper Hose: 1.5 in.
    • Lower Hose: 1.50 in.
    • Part TypeRadiator
    BrandCOLD CASE RADIATORS
    Package Height7.1
    Package Width24.4
    Package Length37.5
    Weight19.8 PG
    Part CategoryPerformance Parts
    Overall Thickness3 in (76.2 mm)
    Overall Height20.4 in (518.2 mm)
    Outlet Size1.5 in
    Radiator Cap IncludedYes
    Radiator MaterialAluminum
    Inlet Size (In.)1.5
    Core Height17.65 in (448.31 mm)
    Core Width28.5 in (723.9 mm)
    Row Quantity2
    Overall Width33.85 in (859.79 mm)
    Tube Size1.25 in (31.8 mm)
    Fan IncludedNo
    Transmission CoolerYes
    Part FitmentDirect Fit
    Radiator StyleCrossflow
    Vendor Part NumberGMT580
    Package Qty1
    Package TypeEA
