Cold Case Radiators LMM570-5K Features:

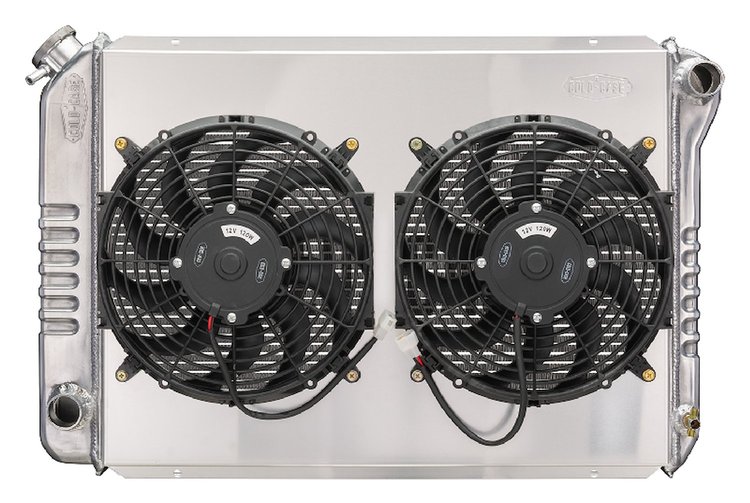

1979-1993 Ford Mustang Fox Body Aluminum Performance Radiator Kit with Coyote Engine Swap. Includes Fans and Shroud as a complete system. These COLD-CASE radiators are Tig-welded 100 percent aluminum and absolutely beautiful. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference between an original versus a COLD-CASE.

• 100 percent TIG welded
• All Aluminum
• Polished OE-style tanks
• 16 fins per in.
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For standard transmission or automatic, with a separate cooler
• Dual 12 in. fan kit pushing 2800 CFM
• Core Height 16.85 in.
• Core Width 24.5 in.
• Overall Height 19.7 in.
• Overall Width 30.175 in.
• Overall Thickness 6.75 in.
• Tubes (2) 1.25 in. Tubes
