Vehicle Info NeededCOMP CAMSPART NUMBER: 249-01-535-8

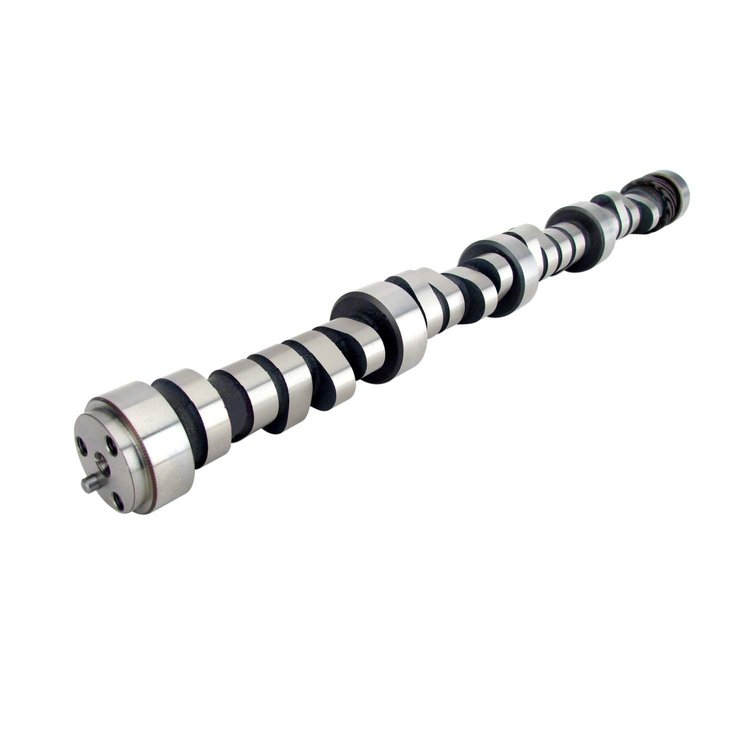

Tri-Power Xtreme Hydraulic Roller Camshaft Big Block Chevy Gen VI 7.4L/8.2L 1996-99 Lift: .513"/.507"
$57795
Ships on 10/22/2026
Lowest Price GuaranteeBig Block Chevrolet Gen VI 7.4L/8.2L 1996-99
- Tri-Power Xtreme Hydraulic Roller Camshaft
- Lift: .513"/.507"
- Duration: 262°/270°
- Lobe Separation Angle: 114°
- RPM Range: 1200-5200
HYDRAULIC ROLLER - Optimized horsepower with good torque and average fuel economyChevelle, Camaro, Corvette, Stingray, Silverado, C10, Firebird, Chevrolet, Big Block, Chevy, BBC, 454, 427, 502, 396, Caprice, Malibu, Impala, Nova, Monte Carlo, S10, 572
Optimized horsepower with good torque and average fuel economy.
Big Block Chevy Gen VI 7.4L/8.2L 1996-99
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width3.0
Package Length24.5
Weight10.41 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)218
Cam StyleHydraulic roller tappet
Grind NumberTPX262HR-14
Exh. Duration Advertised (Deg)270
Engine Make/SizeChevy Gen VI 454
Intake Valve Lift With Factory Rocker Arm Ratio (I0.513
Int. Duration @ .050 In. (Deg)210
Basic Operating Rpm Range1,200-5,200
Intake Valve Lift0.513 in (13.03 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)262
Lobe Separation (Deg)114
Rpm Range1200-5200
Advertised Duration262 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.507
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.513 int./0.507 exh.
QuantitySold individually
Exhaust Valve Lift0.507 in (12.878 mm)
Advertised Intake Duration262
Intake Duration At 050 Inch Lift210
Exhaust Duration At 050 Inch Lift218
Advertised Exhaust Duration270
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift210 int./218 exh.
Valve Springs RequiredYes
Vendor Part Number01-535-8
Package Qty1
Package TypeEA
