Product Discontinued
COMP CAMSPART NUMBER: 249-08-305-8

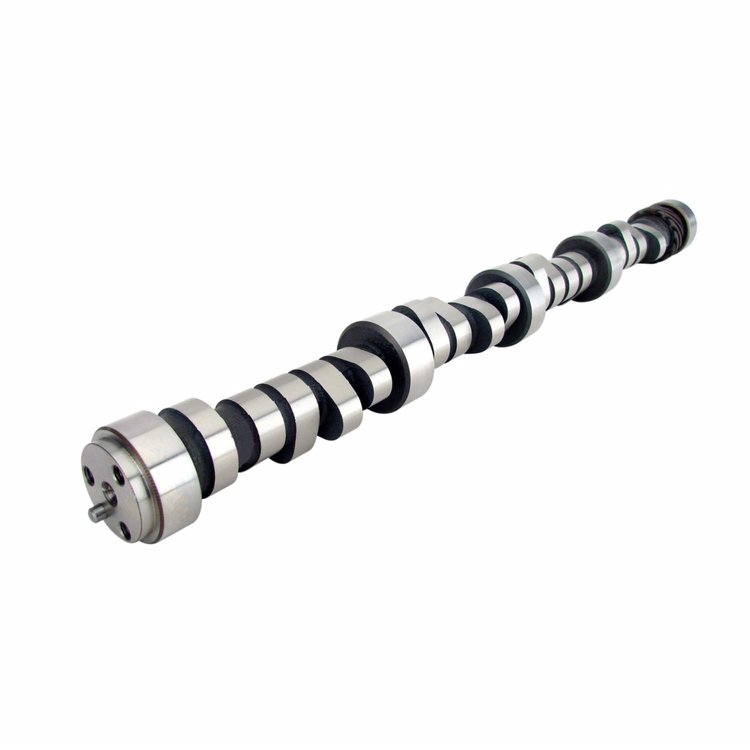

Computer Controlled Hydraulic Roller Tappet Camshaft RPM Range: 1800-5800
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
1987-98 Small Block Chevy 305/350With Factory Roller Cam
- Computer Controlled Hydraulic Roller Tappet Camshaft
- RPM Range: 1800-5800
- Lift: .510"/.510"
- Advertised Duration: 276°/290°
- Lobe Separation Angle: 114°
Not for LT1/LT4265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10
High performance street for modified TPI, 2000+ stall. Requires custom tuning.
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight8.8 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic roller tappet
Grind NumberCS 276H-R14
Exh. Duration Advertised (Deg)290
Engine Make/SizeChevy Small Block (262-400)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.51
Int. Duration @ .050 In. (Deg)220
Basic Operating Rpm Range1,800-5,800
Intake Valve Lift0.51 in (12.954 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)276
Lobe Separation (Deg)114
Rpm Range1800-5800
Advertised Duration276 int./290 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.51
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.510 int./0.510 exh.
QuantitySold individually
Exhaust Valve Lift0.51 in (12.954 mm)
Advertised Intake Duration276
Intake Duration At 050 Inch Lift220
Exhaust Duration At 050 Inch Lift230
Advertised Exhaust Duration290
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift220 int./230 exh.
Valve Springs RequiredYes
Vendor Part Number08-305-8
Package Qty1
Package TypeEA
