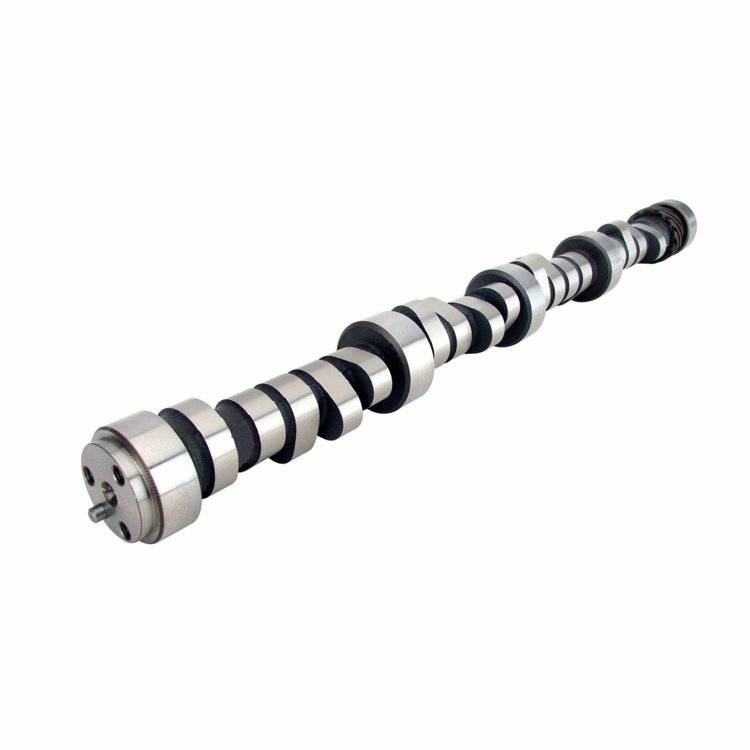

Comp Cams Xtreme Energy Hydraulic Roller Camshafts
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-08-443-8

Comp Cams Xtreme Energy Hydraulic Roller Camshafts

$57795
2 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Chevy 305-350ci Small Block 1987-98
For engines originally equipped with a hydraulic roller camshaft, except LT1 and LT4.
    Xtreme Energy XR294HR Hydraulic Roller Camshaft (CARBURETED)
    Lift: .540''/.562''
    Duration: 294°/300°
    Lobe Separation Angle: 110°
    RPM Range: 2800-6100

    Street/Strip applications, 9:1 compression, intake, headers, 3000 stall converter and gears.

    Operating Range:2800-6100 RPM
    Duration Advertised:288° Intake / 294° Exhaust
    Duration @ .050' Lift:242° Intake / 248° Exhaust
    Valve Lift:.520' Intake / .562' Exhaust
    Lobe Separation Angle:110°

    265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10


    Street/strip applications, 9.5:1+ compression, intake, headers, stall, gears. 3200+ stall.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft
BrandCOMP CAMS
Package Height1.6
Package Width3.1
Package Length24.2
Weight8.76 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)248
Cam StyleHydraulic roller tappet
Grind NumberCS XR294HR-10
Exh. Duration Advertised (Deg)300
Engine Make/SizeChevy Small Block (262-400)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.54
Int. Duration @ .050 In. (Deg)242
Basic Operating Rpm Range2,800-6,100
Intake Valve Lift0.54 in (13.716 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)294
Lobe Separation (Deg)110
Rpm Range2800-6100
Advertised Duration294 int./300 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.562
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.540 int./0.562 exh.
QuantitySold individually
Exhaust Valve Lift0.562 in (14.275 mm)
Advertised Intake Duration294
Intake Duration At 050 Inch Lift242
Exhaust Duration At 050 Inch Lift248
Advertised Exhaust Duration300
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift242 int./248 exh.
Valve Springs RequiredYes
Vendor Part Number08-443-8
Package Qty1
Package TypeEA
