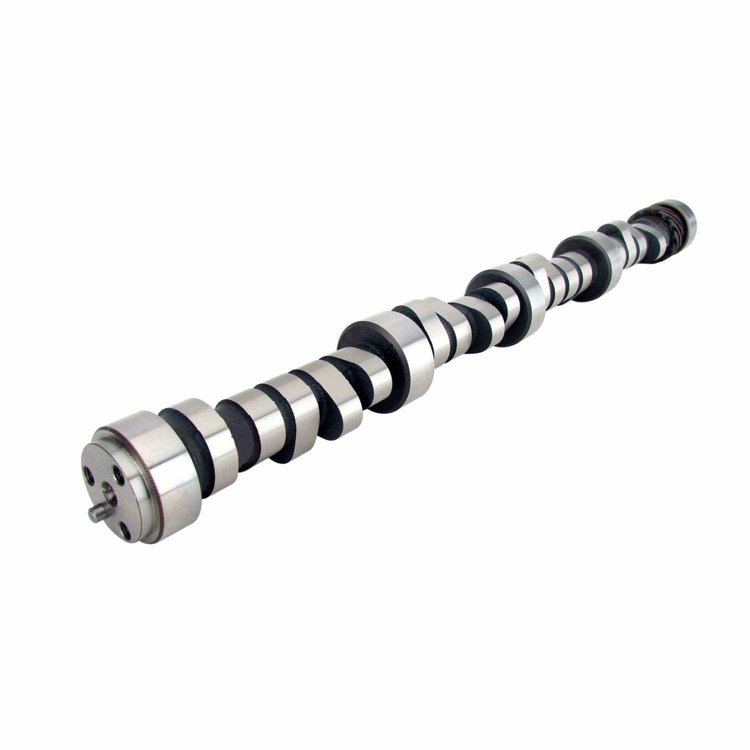

Magnum Hydraulic Roller Camshaft Chevy Small Block 305 & 350 Factory Roller Lift: .560"/.560"
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-08-450-8

Magnum Hydraulic Roller Camshaft Chevy Small Block 305 & 350 Factory Roller Lift: .560"/.560"

$52295
ShippingShips on 09/16/2026
Lowest PriceLowest Price Guarantee

Chevy Small Block 305 & 350, 1987-98
  • (CARBURETED)
    • Magnum Hydraulic Roller Camshaft
      Chevy Small Block 305 & 350 Factory Roller
    • Lift: .560"/.560"
    • Duration: 286°/286°
    • Lobe Separation Angle: 110°
    • RPM Range: 2500-6000

    • Cams Are Very Aggressive
    • Designed For Performance Oriented Vehicles
    • Deliver More Power Than Standard Camshafts
    • 1 Year Limited Warranty

      265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10


      Great for street machines. Best with headers and aluminum intake. 2500+ stall. Rough idle.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Part TypeCamshaft
    BrandCOMP CAMS
    Package Height2.8
    Package Width2.9
    Package Length24.3
    Weight8.54 PG
    Part CategoryPerformance Parts
    Exh. Duration @ .050 In. (Deg)230
    Cam StyleHydraulic roller tappet
    Grind NumberCS 286H-R10
    Exh. Duration Advertised (Deg)286
    Engine Make/SizeChevy Small Block (262-400)
    Intake Valve Lift With Factory Rocker Arm Ratio (I0.56
    Int. Duration @ .050 In. (Deg)230
    Basic Operating Rpm Range2,500-6,000
    Intake Valve Lift0.56 in (14.224 mm)
    Computer-Controlled CompatibleNo
    Int. Duration Advertised (Deg)286
    Lobe Separation (Deg)110
    Rpm Range2500-6000
    Advertised Duration286 int./286 exh.
    Exhaust Valve Lift With Factory Rocker Arm Ratio (0.56
    UsageStreet/Strip
    Valve Lift With Factory Rocker Arm Ratio0.560 int./0.560 exh.
    QuantitySold individually
    Exhaust Valve Lift0.56 in (14.224 mm)
    Advertised Intake Duration286
    Intake Duration At 050 Inch Lift230
    Exhaust Duration At 050 Inch Lift230
    Advertised Exhaust Duration286
    Lifter TypeHydraulic Roller
    Duration At 050 Inch Lift230 int./230 exh.
    Valve Springs RequiredYes
    Vendor Part Number08-450-8
    Package Qty1
    Package TypeEA
