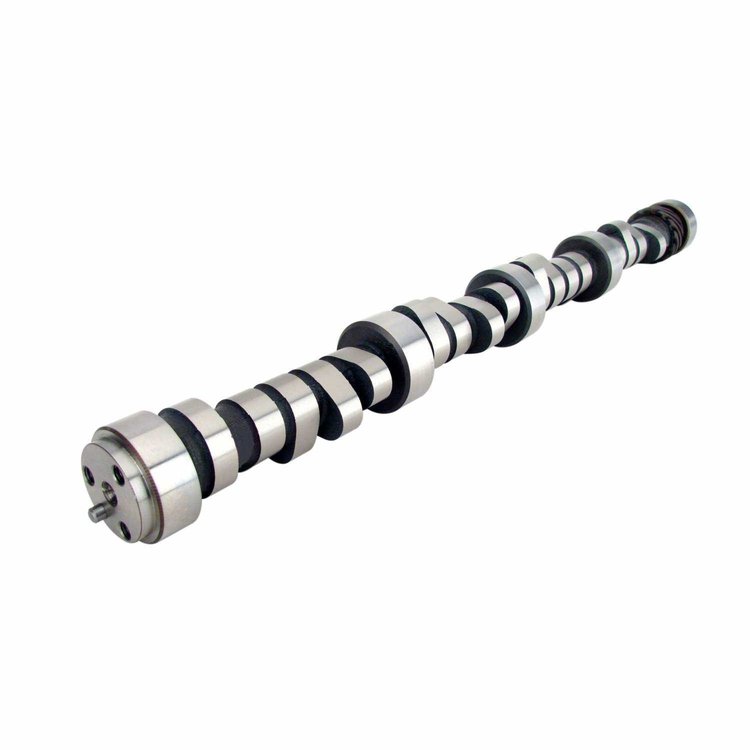

XFI Hydraulic Roller Camshaft Small Block Chevy 305/350 1987-95 Lift: .584"/.579" With 1.6 Rockers

Vehicle Info Needed

COMP CAMSPART NUMBER: 249-08-468-8

XFI Hydraulic Roller Camshaft Small Block Chevy 305/350 1987-95 Lift: .584"/.579" With 1.6 Rockers

Name: XFI Hydraulic Roller Camshaft Small Block Chevy 305/350 1987-95 Lift: .584"/.579" With 1.6 Rockers
Brand: COMP CAMS
SKU: 249-08-468-8
Price: 533.95 USD
Availability: InStock

^$533⁹⁵

Ships on 09/16/2026

Lowest Price Guarantee

Chevy 305/350ci 1987-98
O.E. Hydraulic Roller Camshaft Applications Except LT1 & LT4.

Lift: .584"/.579" With 1.6 Rockers
Duration: 292°/300°
Lobe Separation Angle: 113°

RPM Range: 2200-6200

Good mid-range with excellent top end. Will require headers, gears and 2500+ stall. Rough idle.

Note: for use with 1987-98 305 & 350ci factory hydraulic roller camshaft applications, EXCEPT LT1 & LT4.

Operating Range:	2200-6200 RPM
Duration Advertised:	292° Intake / 300° Exhaust
Duration @ .050' Lift:	242° Intake / 248° Exhaust
Valve Lift w/1.6 Rockers:	.584' Intake / .579' Exhaust
Lobe Separation Angle:	113°

Part TypeCamshaft

BrandCOMP CAMS

Package Height2.6

Package Width2.9

Package Length24.3

Weight8.8 PG

Part CategoryPerformance Parts

Exh. Duration @ .050 In. (Deg)248

Cam StyleHydraulic roller tappet

Grind Number292XFI HR13

Exh. Duration Advertised (Deg)300

Engine Make/SizeChevy Small Block (262-400)

Intake Valve Lift With Factory Rocker Arm Ratio (I0.584

Int. Duration @ .050 In. (Deg)242

Basic Operating Rpm Range2,200-6,200

Intake Valve Lift0.584 in (14.834 mm)

Computer-Controlled CompatibleYes

Int. Duration Advertised (Deg)292

Lobe Separation (Deg)113

Rpm Range2200-6200

Advertised Duration292 int./300 exh.

Exhaust Valve Lift With Factory Rocker Arm Ratio (0.579

UsageStreet/Performance

Valve Lift With Factory Rocker Arm Ratio0.584 int./0.579 exh.

QuantitySold individually

Exhaust Valve Lift0.579 in (14.707 mm)

Advertised Intake Duration292

Intake Duration At 050 Inch Lift242

Exhaust Duration At 050 Inch Lift248

Advertised Exhaust Duration300

Lifter TypeHydraulic Roller

Duration At 050 Inch Lift242 int./248 exh.

Valve Springs RequiredYes

Vendor Part Number08-468-8

Package Qty1

Package TypeEA
