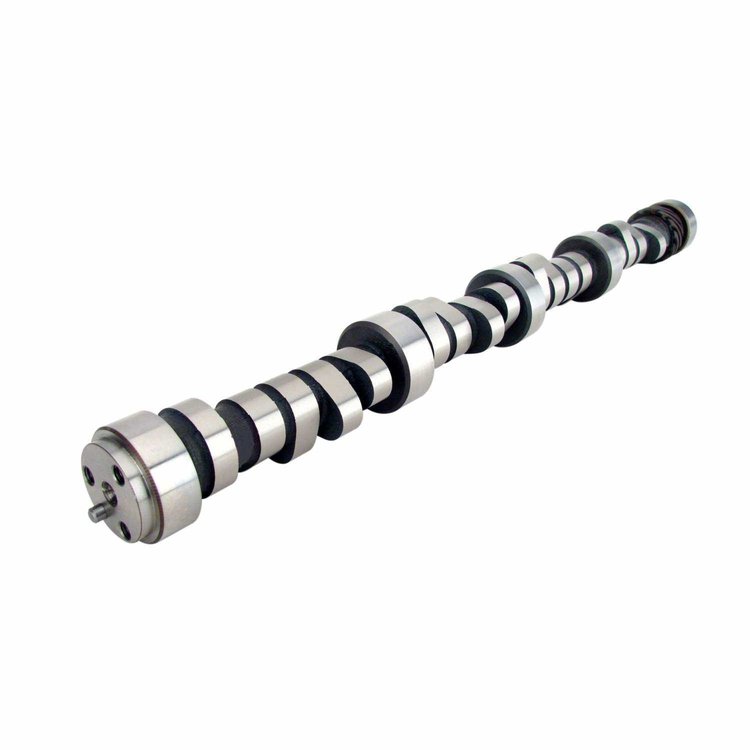

Magnum Hydraulic Roller Camshaft Chevy Small Block 305 & 350 Factory Roller Lift: .600"/.600"
Product Discontinued
COMP CAMSPART NUMBER: 249-08-470-8

Magnum Hydraulic Roller Camshaft Chevy Small Block 305 & 350 Factory Roller Lift: .600"/.600"

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chevy Small Block 305 & 350, 1987-98
  • (CARBURETED)
    • Magnum Hydraulic Roller Camshaft
      Chevy Small Block 305 & 350 Factory Roller
    • Lift: .600"/.600"
    • Duration: 314°/314°
    • Lobe Separation Angle: 110°
    • RPM Range: 3500-6500

    • Cams Are Very Aggressive
    • Designed For Performance Oriented Vehicles
    • Deliver More Power Than Standard Camshafts
    • 1 Year Limited Warranty

      265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10


      Limited street/ bracket racing. 10.5:1. 3500+ stall. Headers and race intake.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Part TypeCamshaft
    BrandCOMP CAMS
    Package Height2.9
    Package Width3.1
    Package Length24.4
    Weight8.45 PG
    Part CategoryPerformance Parts
    Exh. Duration @ .050 In. (Deg)252
    Cam StyleHydraulic roller tappet
    Grind Number314HR
    Exh. Duration Advertised (Deg)314
    Engine Make/SizeChevy Small Block (262-400)
    Intake Valve Lift With Factory Rocker Arm Ratio (I0.6
    Int. Duration @ .050 In. (Deg)252
    Basic Operating Rpm Range3,500-6,500
    Intake Valve Lift0.6 in (15.24 mm)
    Computer-Controlled CompatibleYes
    Int. Duration Advertised (Deg)314
    Lobe Separation (Deg)110
    Rpm Range3500-6500
    Advertised Duration314 int./314 exh.
    Exhaust Valve Lift With Factory Rocker Arm Ratio (0.6
    UsageStreet/Strip
    Valve Lift With Factory Rocker Arm Ratio0.600 int./0.600 exh.
    QuantitySold individually
    Exhaust Valve Lift0.6 in (15.24 mm)
    Advertised Intake Duration314
    Intake Duration At 050 Inch Lift252
    Exhaust Duration At 050 Inch Lift252
    Advertised Exhaust Duration314
    Lifter TypeHydraulic Roller
    Duration At 050 Inch Lift252 int./252 exh.
    Valve Springs RequiredYes
    Vendor Part Number08-470-8
    Package Qty1
    Package TypeEA
