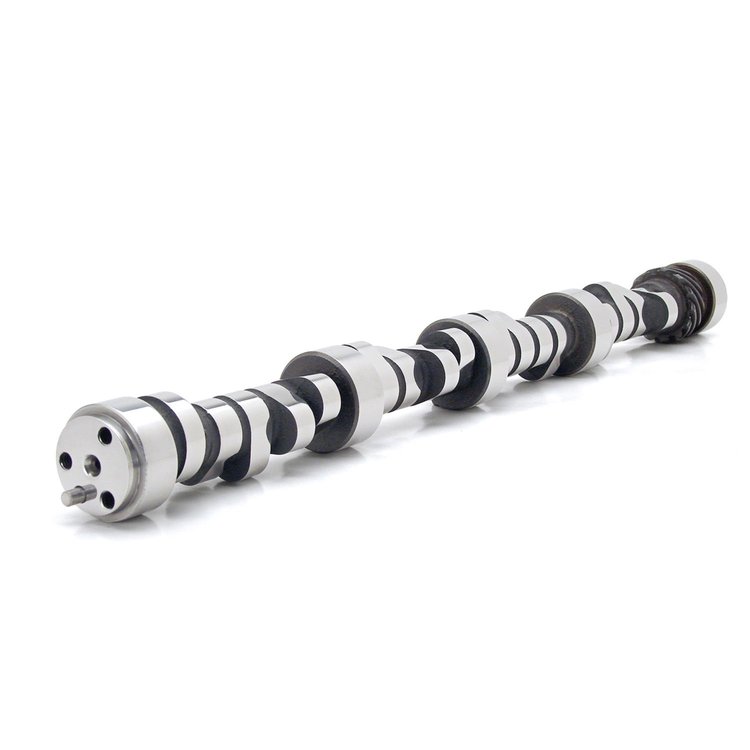

Small Block Chevy 262-400ci 1955-98 (With 1.6 Rockers)
- 4-Pattern O.E. Hydraulic Roller Camshaft
Small Block Chevy 262-400ci 1955-98
Intake Lift: .638"/.637"
Exhaust Lift: .622"/.622"
Lobe Separation Angle: 108.5°/107.5°
RPM Range: 2900-7200
Intake Duration: 295°/293°
Exhaust Duration: 307°/305°
Excellant for street/strip applications with good heads and raised compression in high RPM engines. 3200+ stall.
265, 283, 307, 302, 305, 327, 350, 383, 400, 427, L46, L48, L65, LM1, LT-1, L82, L81, LS9, L83, L98, L05, LG3, LG4, LT1, LT4, Camaro, Corvette, Chevelle, Stingray, Silverado, C10, Firebird, Chevrolet, Chevy, Small Block Chevy, Caprice, Malibu, Impala, Nova, 355, GEN1, Monte Carlo, S10
Excellent for street/strip applications with good heads and raised compression in high RPM engines. 3200+ stall.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width3.0
Package Length24.5
Weight8.8 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)253
Cam StyleHydraulic roller tappet
Grind Number293QIO8
Exh. Duration Advertised (Deg)307
Engine Make/SizeChevy Small Block (262-400)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.638/0.637
Int. Duration @ .050 In. (Deg)243
Basic Operating Rpm Range2,900-7,200
Intake Valve Lift0.638 in (16.205 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)295
Lobe Separation (Deg)108.5/107.5
Rpm Range2900-7200
Advertised Duration295 int./307 exh., 293 int./305 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.622/0.622
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.638 int./0.622 exh., 0.637 int./0.622 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lift0.622 in (15.799 mm)
Advertised Intake Duration295/293
Intake Duration At 050 Inch Lift243/241
Exhaust Duration At 050 Inch Lift253/251
Advertised Exhaust Duration307/305
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift243 int./253 exh., 241 int./251 exh.
Valve Springs RequiredYes
Vendor Part Number08-607-44
Package Qty1
Package TypeEA
