Vehicle Info NeededCOMP CAMSPART NUMBER: 249-10-212-5

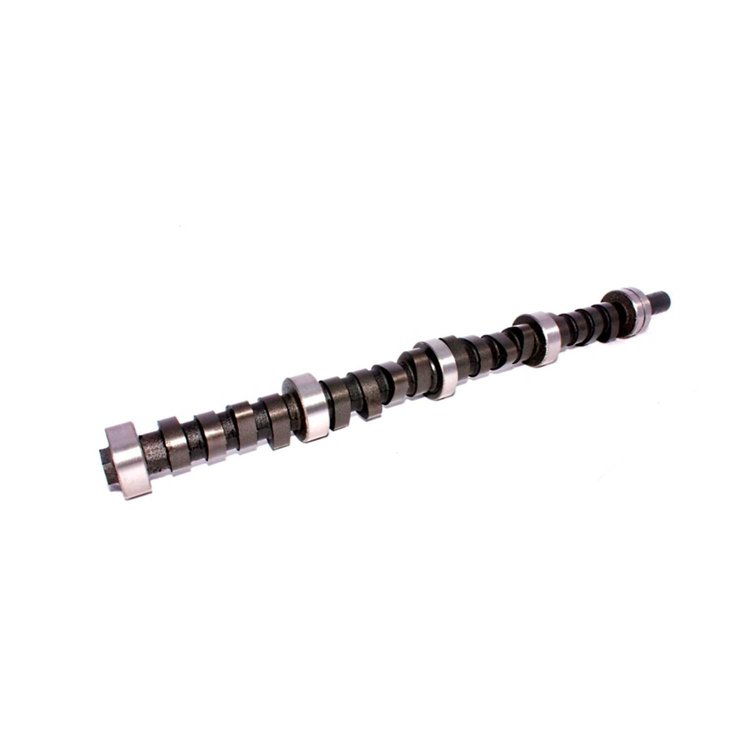

COMP Cams Camshaft Hydraulic Flat Tappet
$32595
Ships on 09/09/2026
Lowest Price GuaranteeAMC 290-401ci 1966-1991
- COMP Cams Camshaft
- Hydraulic Flat Tappet
- Advertised Duration 312/312
- Lift .565/.565
- American Motors
Hydraulic-Best in heavy car with 3500+ stall and 10:1+ compression.AMC; Jeep; 4.0; 290; XJ; Cherokee; Wagoneer; Comanche; Grand Wagoneer; Wrangler; JK; Rambler; Eagle; ZJ; Chrysler; AM General; American Motors; 327; 390; 304; 327; 343; 360; 5.9; Rebel; Nash; AMX; Javelin
Best in heavy car with 3500+ stall and 10:1+ compression.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.75
Package Width3.0
Package Length24.5
Weight10.09 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)260
Cam StyleHydraulic flat tappet
Grind Number312H-8
Exh. Duration Advertised (Deg)312-6
Engine Make/SizeAMC 290-401
Intake Valve Lift With Factory Rocker Arm Ratio (I0.565
Int. Duration @ .050 In. (Deg)260
Basic Operating Rpm Range3,500-7,000
Intake Valve Lift0.565 in (14.351 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)312-6
Lobe Separation (Deg)108
Rpm Range3500-7000
Advertised Duration312 int./312 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.565
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.565 int./0.565 exh.
QuantitySold individually
Exhaust Valve Lift0.565 in (14.351 mm)
Advertised Intake Duration312
Intake Duration At 050 Inch Lift260
Exhaust Duration At 050 Inch Lift260
Advertised Exhaust Duration312
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift260 int./260 exh.
Valve Springs RequiredYes
Vendor Part Number10-212-5
Package Qty1
Package TypeEA
