Vehicle Info NeededCOMP CAMSPART NUMBER: 249-10-213-5

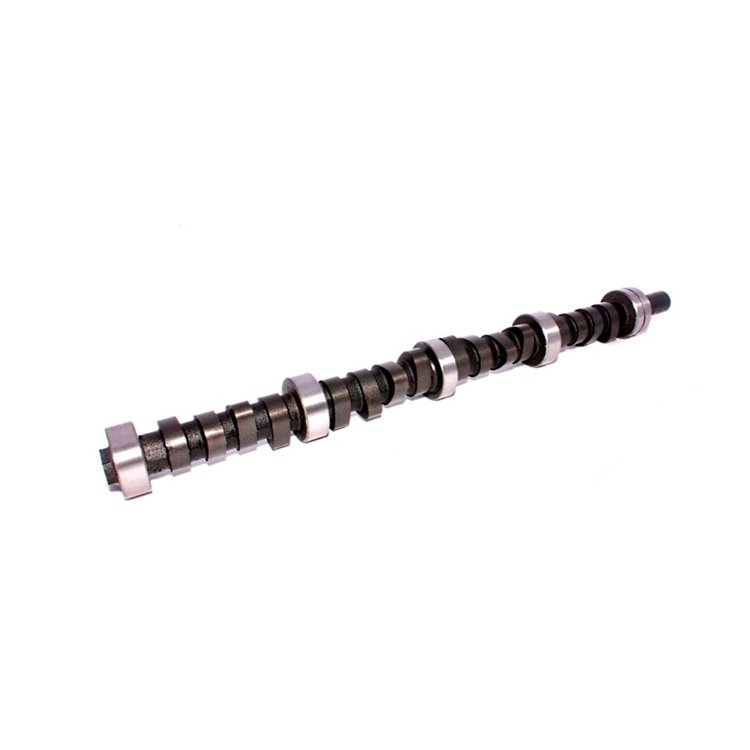

COMP Cams Camshaft Hydraulic Flat Tappet
$32595
Ships on 09/09/2026
Lowest Price GuaranteeAMC 290-401ci 1966-1991
- COMP Cams Camshaft
- Hydraulic Flat Tappet
- Advertised Duration 320/320
- Lift .565/.565
- American Motors
- Hi-Tech Camshaft
- Hydraulic
- Best Racing Hydraulic
- 4500 Plus Stall Or 4 Speed w/11:1 Compression
- 1 Year Limited Warranty
AMC; Jeep; 4.0; 290; XJ; Cherokee; Wagoneer; Comanche; Grand Wagoneer; Wrangler; JK; Rambler; Eagle; ZJ; Chrysler; AM General; American Motors; 327; 390; 304; 327; 343; 360; 5.9; Rebel; Nash; AMX; Javelin
Our best racing hydraulic, 4500+ stall or 4 speed with 11:1 compression.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
- The Hi-Tech Hydraulic series camshafts from COMP Cams were designed with all competition/performance enthusiasts in mind. These hydraulic camshafts are the mildest of the series. The wide variety of cam selections covers drag race, oval track, marine, puller and mud race, road race, turbo blower, computer-compatible, LT1 computer-compatible, and even RVs.
Part TypeCamshaft
Product LineComp Cams Hi-Tech Hydraulic Flat Tappet Camshafts
BrandCOMP CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)268
Cam StyleHydraulic flat tappet
Grind Number320H-8
Exh. Duration Advertised (Deg)320-9
Engine Make/SizeAMC 290-401
Intake Valve Lift With Factory Rocker Arm Ratio (I0.565
Int. Duration @ .050 In. (Deg)268
Basic Operating Rpm Range4,000-7,500
Intake Valve Lift0.565 in (14.351 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)320-9
Lobe Separation (Deg)108
Rpm Range4000-7500
Advertised Duration320 int./320 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.565
UsageStrip
Valve Lift With Factory Rocker Arm Ratio0.565 int./0.565 exh.
QuantitySold individually
Exhaust Valve Lift0.565 in (14.351 mm)
Advertised Intake Duration320
Intake Duration At 050 Inch Lift268
Exhaust Duration At 050 Inch Lift268
Advertised Exhaust Duration320
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift268 int./268 exh.
Valve Springs RequiredYes
Vendor Part Number10-213-5
Package Qty1
Package TypeEA
