Vehicle Info NeededCOMP CAMSPART NUMBER: 249-10-215-5

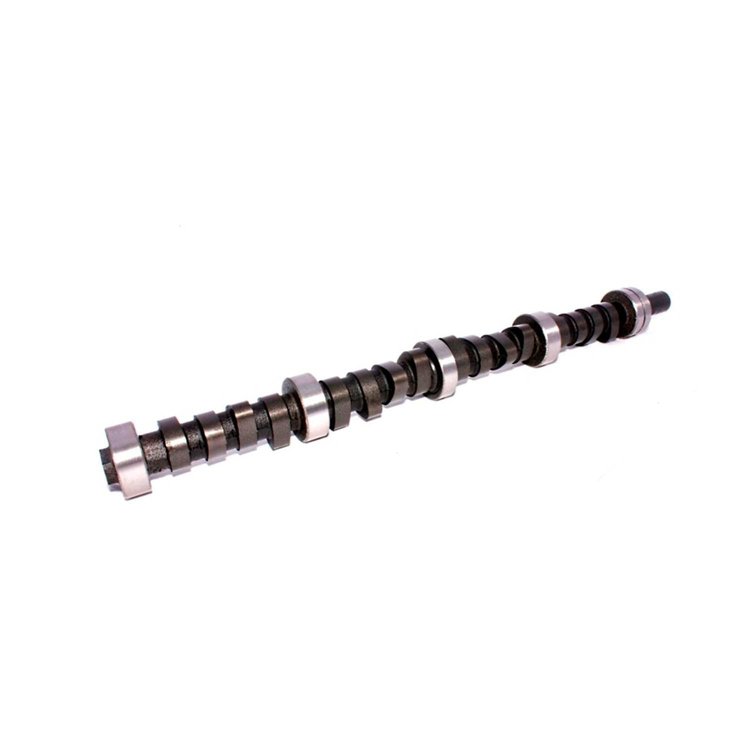

Xtreme Energy 262H Hydraulic Flat Tappet Camshaft Only Lift: .493"/.500" Duration: 262°/270° RPM Range: 1800-5800
$32595
Ships on 09/15/2026
Lowest Price GuaranteeAMC 290-401ci 1966-1991
- Xtreme Energy 262H Hydraulic Flat Tappet Camshaft Only
Lift: .493"/.500"
Duration: 262°/270°
RPM Range: 1800-5800
Hydraulic-Excellent response, good mid-range, noticeable idle
AMC; Jeep; 4.0; 290; XJ; Cherokee; Wagoneer; Comanche; Grand Wagoneer; Wrangler; JK; Rambler; Eagle; ZJ; Chrysler; AM General; American Motors; 327; 390; 304; 327; 343; 360; 5.9; Rebel; Nash; AMX; Javelin
Excellent response, good mid-range, noticeable idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height2.6
Package Width3.0
Package Length24.3
Weight10.7 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)224
Cam StyleHydraulic flat tappet
Grind NumberA8 XE262H10
Exh. Duration Advertised (Deg)270
Engine Make/SizeAMC 290-401
Intake Valve Lift With Factory Rocker Arm Ratio (I0.493
Int. Duration @ .050 In. (Deg)218
Basic Operating Rpm Range1,800-5,800
Intake Valve Lift0.493 in (12.522 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)262
Lobe Separation (Deg)110
Rpm Range1800-5800
Advertised Duration262 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.5
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.493 int./0.500 exh.
QuantitySold individually
Exhaust Valve Lift0.5 in (12.7 mm)
Advertised Intake Duration262
Intake Duration At 050 Inch Lift218
Exhaust Duration At 050 Inch Lift224
Advertised Exhaust Duration270
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift218 int./224 exh.
Valve Springs RequiredYes
Vendor Part Number10-215-5
Package Qty1
Package TypeEA
