Vehicle Info NeededCOMP CAMSPART NUMBER: 249-102525

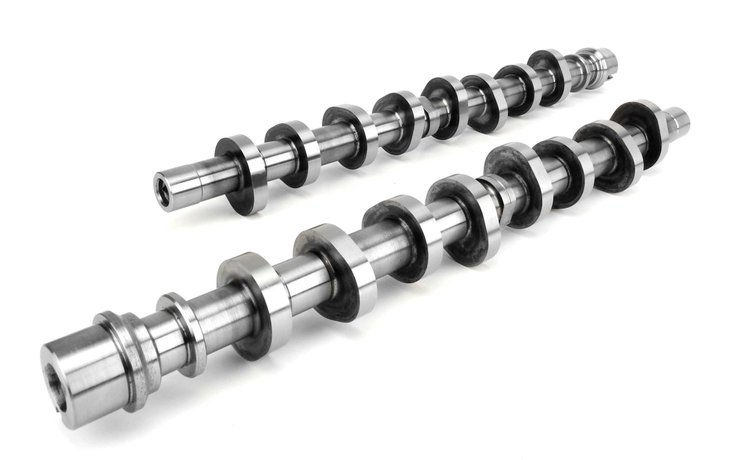

Tri-Power Xtreme Hydraulic Roller Camshaft Ford 4.6L/5.4L 2-Valve 1992-Present Lift: .484"/.475"
$70476$880.95You Save$176.19
Ships on Sep 04, 2026
Lowest Price GuaranteeFord 4.6L/5.4L SOHC 2V 1992-Present
- Tri-Power Xtreme Hydraulic Roller Camshaft
- Lift: .484"/.475"
- Duration: 247°/257°
- Lobe Separation Angle: 116°
- RPM Range: 800-4800
Excellent torque. Better low- and mid-range torque and horsepower. Programmer upgrade required.Ford; Modular; 2-Valve; Mustang; Mustang GT; SN95; 2V; Mercury
ptimized fuel mileage with good torque and horsepower. Requires tuning.
Ford 4.6L/5.4L 2-Valve 1992-Present
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.0
Package Width6.0
Package Length25.0
Weight17.5 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)222
Cam StyleHydraulic roller follower
Grind NumberTPX248HR-16
Exh. Duration Advertised (Deg)257
Engine Make/SizeFord 4.6L 2V
Intake Valve Lift With Factory Rocker Arm Ratio (I0.484
Int. Duration @ .050 In. (Deg)212
Basic Operating Rpm Range800-4,800
Intake Valve Lift0.484 in (12.294 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)247
Lobe Separation (Deg)116
Rpm Range800-4800
Advertised Duration247 int./257 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.475
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.484 int./0.475 exh.
QuantitySold as a pair
Exhaust Valve Lift0.475 in (12.065 mm)
Advertised Intake Duration247
Intake Duration At 050 Inch Lift212
Exhaust Duration At 050 Inch Lift222
Advertised Exhaust Duration257
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift212 int./222 exh.
Valve Springs RequiredYes
Vendor Part Number102525
Package Qty1
Package TypeEA
