Tri-Power Xtreme Hydraulic Roller Camshaft Ford 4.6L/5.4L 2-Valve 1992-Present Lift: .484"/.475"
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-102530

Tri-Power Xtreme Hydraulic Roller Camshaft Ford 4.6L/5.4L 2-Valve 1992-Present Lift: .484"/.475"

$79899
ShippingShips on 10/22/2026
Lowest PriceLowest Price Guarantee

Ford 4.6L/5.4L SOHC 2V 1992-Present

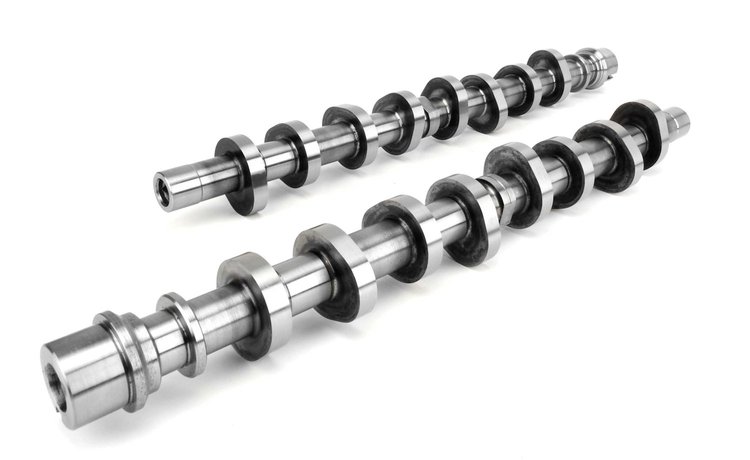

    Tri-Power Xtreme Hydraulic Roller Camshaft
    Ford 4.6L/5.4L 2-Valve 1992-Present
  • Lift: .484"/.475"
  • Duration: 253°/261°
  • Lobe Separation Angle: 115°
  • RPM Range: 1000-5000

  • Optimized Fuel Mileage
  • Good Torque Horse Power
  • 1 Year Limited Warranty

    Ford; Modular; 2-Valve; Mustang; Mustang GT; SN95; 2V; Mercury


    Exceptional torque with good horsepower and good fuel economy. Requires tuning.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

For late model, fuel injected, computer-controlled engines, Tri-Power Xtreme Camshafts are designed to work with Fast Flash Programmers to optimize torque and horsepower and improve fuel efficiency. They feature a hydraulic roller design, work with a standard valvetrain, and require no modifications to install.

Features:

  • Three different camshaft designs targeted to improve horsepower, torque or fuel efficiency
  • By decreasing pumping losses, efficiency and performance are enhanced, regardless of camshaft selected
  • Designed for factory fuel injected engines; use programmer for best mileage gains
Part TypeCamshaft
Product LineComp Cams TRI-POWER XTREME Hydraulic Roller Camshafts
BrandCOMP CAMS
Package Height3.5
Package Width5.9
Package Length25.6
Weight13.38 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)226
Cam StyleHydraulic roller follower
Grind NumberTPX254HR-15
Exh. Duration Advertised (Deg)261
Engine Make/SizeFord 4.6L 2V
Intake Valve Lift With Factory Rocker Arm Ratio (I0.484
Int. Duration @ .050 In. (Deg)218
Basic Operating Rpm Range1,000-5,000
Intake Valve Lift0.484 in (12.294 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)253
Lobe Separation (Deg)115
Rpm Range1000-4800
Advertised Duration253 int./261 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.475
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.484 int./0.475 exh.
QuantitySold as a pair
Exhaust Valve Lift0.475 in (12.065 mm)
Advertised Intake Duration253
Intake Duration At 050 Inch Lift218
Exhaust Duration At 050 Inch Lift226
Advertised Exhaust Duration261
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift218 int./226 exh.
Valve Springs RequiredYes
Vendor Part Number102530
Package Qty1
Package TypeEA
