Vehicle Info NeededCOMP CAMSPART NUMBER: 249-102535

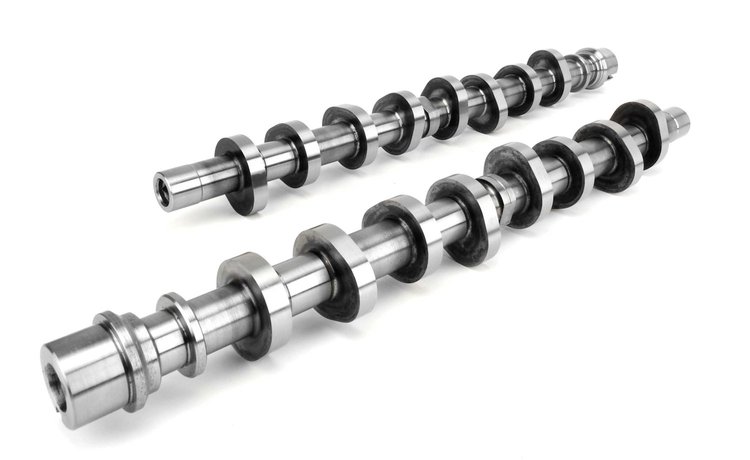

Tri-Power Xtreme Hydraulic Roller Camshaft Ford 4.6L/5.4L SOHC 2-Valve 1992-Present Lift: .495"/.495"
$79895
Ships on Sep 03, 2026
Lowest Price GuaranteeFord 4.6L/5.4L SOHC 2V 1992-Present
- Tri-Power Xtreme Hydraulic Roller Camshaft
- Lift: .495"/.495"
- Duration: 261°/267°
- Lobe Separation Angle: 114°
- RPM Range: 1200-5200
Optimized combination for power & torque with acceptable fuel economy for daily driver or highway cruiser. Programmer upgrade requiredFord; Modular; 2-Valve; Mustang; Mustang GT; SN95; 2V; Mercury
Optimized combination for power and torque with acceptable fuel economy for daily driver or highway cruiser. Requires tuning.
Ford 4.6L/5.4L SOHC 2-Valve 1992-Present
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.25
Package Width6.19
Package Length25.38
Weight17.5 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic roller follower
Grind NumberTPX262HR-14
Exh. Duration Advertised (Deg)267
Engine Make/SizeFord 4.6L 2V
Intake Valve Lift With Factory Rocker Arm Ratio (I0.495
Int. Duration @ .050 In. (Deg)224
Basic Operating Rpm Range1,200-5,200
Intake Valve Lift0.495 in (12.573 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)261
Lobe Separation (Deg)114
Rpm Range1200-5200
Advertised Duration261 int./267 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.495
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.495 int./0.495 exh.
QuantitySold as a pair
Exhaust Valve Lift0.495 in (12.573 mm)
Advertised Intake Duration261
Intake Duration At 050 Inch Lift224
Exhaust Duration At 050 Inch Lift230
Advertised Exhaust Duration267
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift224 int./230 exh.
Valve Springs RequiredYes
Vendor Part Number102535
Package Qty1
Package TypeEA
