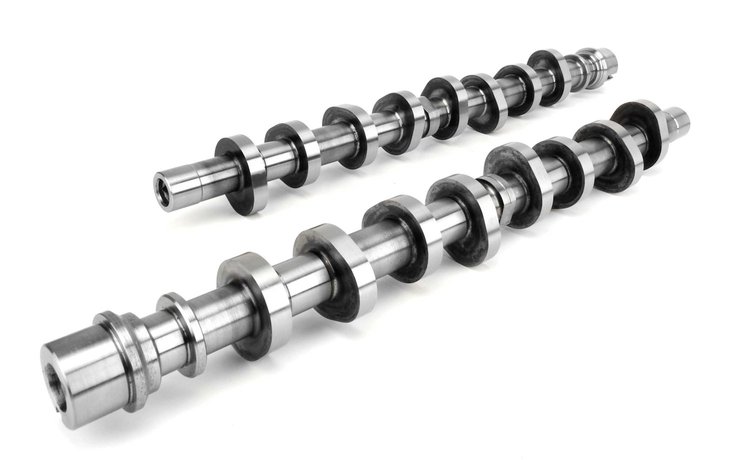

- Xtreme Energy
- Camshaft
- Blower Hyd. Roller Swinging Follower
- 1600-5600rpm
- Adv.Dur. 262 Int./266 Exh.
- V/ Lift Int./Exh. .55
- Lobe Angle 1136 deg.
- Produces Better Throttle Response
- Produces Top Engine Horsepower
- Delivers Increased Engine Vacuum
- 1 Year Limited Warranty
Ford; Modular; 2-Valve; Mustang; Mustang GT; SN95; 2V; Mercury
Good torque with powerful mid-range when using a blower. Requires custom tuning.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.0
Package Width6.0
Package Length25.0
Weight16.64 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic roller follower
Grind NumberXE262BH-16
Exh. Duration Advertised (Deg)266
Engine Make/SizeFord 4.6L SOHC
Intake Valve Lift With Factory Rocker Arm Ratio (I0.55
Int. Duration @ .050 In. (Deg)226
Basic Operating Rpm Range1,600-5,600
Intake Valve Lift0.55 in (13.97 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)262
Lobe Separation (Deg)116
Rpm Range1600-5600
Advertised Duration262 int./266 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.55
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.550 int./0.550 exh.
QuantitySold as a pair
Exhaust Valve Lift0.55 in (13.97 mm)
Advertised Intake Duration262
Intake Duration At 050 Inch Lift226
Exhaust Duration At 050 Inch Lift230
Advertised Exhaust Duration266
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift224 int./230 exh.
Valve Springs RequiredYes
Vendor Part Number102560
Package Qty1
Package TypeEA
