Vehicle Info NeededCOMP CAMSPART NUMBER: 249-102600

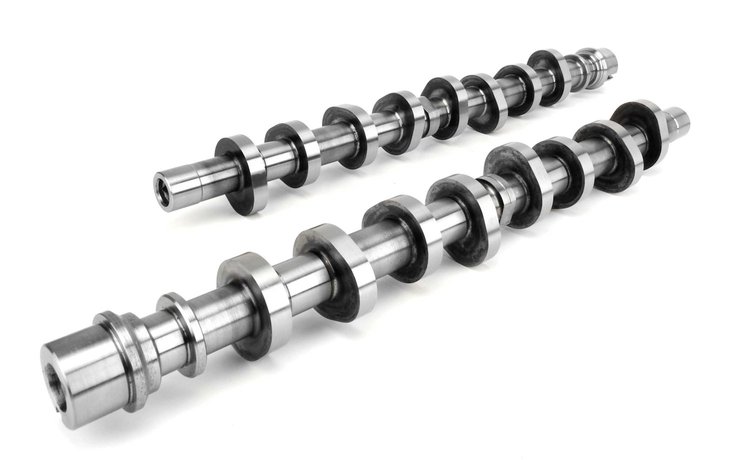

Comp Cams Xtreme Energy Hydraulic Roller Camshafts
$88095
2 left in stock
Ships Today
Lowest Price GuaranteeFord 4.6L/5.4L SOHC MODULAR 2V 1991-Present
- Xtreme Energy XE270H Hydraulic Roller Swinging Follower Camshaft
Lift: .550"/.550"
Duration: 270°/274°
Lobe Separation Angle: 113°
RPM Range: 1800-5800
SOHC-Hot street cam, needs 3.55+ gears. 2000+ stall. Intake, exhaust, computer and spring 26113 recommended. Noticeable idle.
Ford; Modular; 2-Valve; Mustang; Mustang GT; SN95; 2V; Mercury
Hot street cam, needs higher gear ratio. 2000+ stall. Intake, exhaust, computer upgrade recommended. Noticeable idle. Requires custom tuning.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.4
Package Width5.9
Package Length25.6
Weight13.38 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)238
Cam StyleHydraulic roller follower
Grind NumberXE270AH
Exh. Duration Advertised (Deg)274
Engine Make/SizeFord 4.6L 2V
Intake Valve Lift With Factory Rocker Arm Ratio (I0.55
Int. Duration @ .050 In. (Deg)234
Basic Operating Rpm Range1,800-5,800
Intake Valve Lift0.55 in (13.97 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)270
Lobe Separation (Deg)113
Rpm Range1800-5800
Advertised Duration270 int./274 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.55
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.550 int./0.550 exh.
QuantitySold as a pair
Exhaust Valve Lift0.55 in (13.97 mm)
Advertised Intake Duration270
Intake Duration At 050 Inch Lift234
Exhaust Duration At 050 Inch Lift238
Advertised Exhaust Duration274
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift234 int./238 exh.
Valve Springs RequiredYes
Vendor Part Number102600
Package Qty1
Package TypeEA
