Product Discontinued
COMP CAMSPART NUMBER: 249-105300

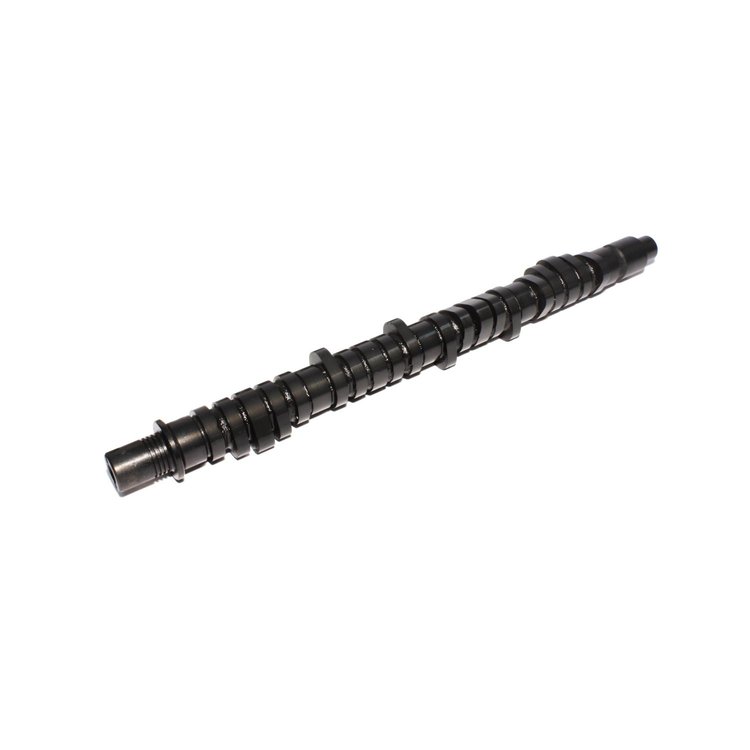

Quiktyme Solid Swinging Follower Camshaft Honda D16Y8 1.6L SOHC VTEC Lift: .456"/.428"
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Honda D16Y8 1.6L SOHC VTEC 1996-2000
- Quiktyme Solid Swinging Follower Camshaft
- Lift: .456"/.428"
- Duration: 256°/268°
- Lobe Separation Angle: 107°/111°
- RPM Range: 2000-7200
Severe Street/Competition-Best performance cam available. Large increases above stock cam from off idle to the rev limiter. Excellent high RPM power. Requires Springs 249-912-16.
Best performance cam available. Large increases above stock cam from off idle to the rev limiter. Excellent high RPM power. Requires spring 912-16.
Honda D16Y8 1.6L SOHC VTEC
Part TypeCamshaft
BrandCOMP CAMS
Package Height3.0
Package Width3.0
Package Length24.25
Weight5.9 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)216
Cam StyleMechanical roller follower
Grind Number260 VTEC
Exh. Duration Advertised (Deg)268
Engine Make/SizeHonda 1.6L
Intake Valve Lift With Factory Rocker Arm Ratio (I0.456
Int. Duration @ .050 In. (Deg)220
Basic Operating Rpm Range2,000-7,200
Intake Valve Lift0.455 in (11.557 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)260
Lobe Separation (Deg)107/111
Rpm Range2000-7200
Advertised Duration256 int./268 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.428
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.456 int./0.428 exh.
QuantitySold individually
Exhaust Valve Lift0.43 in (10.922 mm)
Advertised Intake Duration256
Intake Duration At 050 Inch Lift220
Exhaust Duration At 050 Inch Lift216
Advertised Exhaust Duration268
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift220 int./216 exh.
Valve Springs RequiredYes
Vendor Part Number105300
Package Qty1
Package TypeEA
