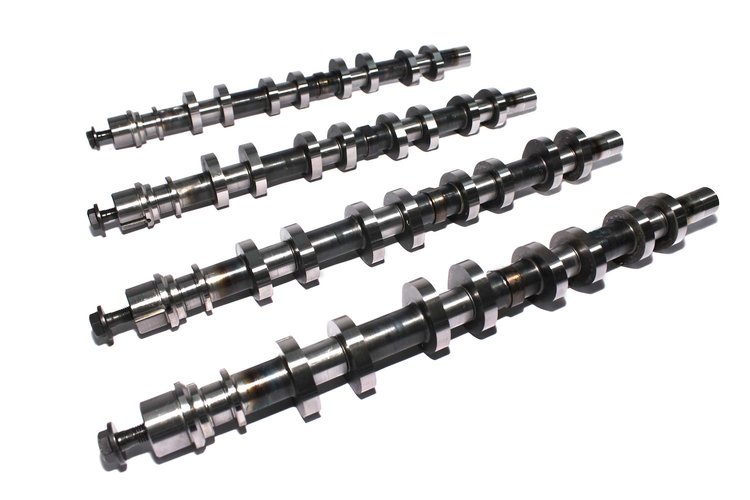

Comp Cams Xtreme Energy Hydraulic Roller Camshafts
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-106060

Comp Cams Xtreme Energy Hydraulic Roller Camshafts

$1,70796$2134.95You Save$426.99
ShippingShips on Sep 04, 2026
Lowest PriceLowest Price Guarantee

Ford 4.6L/5.4L DOHC MODULAR 4V 1993-Present
    Xtreme RPM Series Hydraulic Roller Swinging Follower Camshaft
    Lift: .425"/.425"
    Duration: 253°/253°
    Lobe Separation Angle: 116°
    RPM Range: 1000-5000

    Excellent replacement cam with strong torque. No computer modifications necessary.

    Ford; Modular; 4-Valve; Mustang; Mustang GT; SN95; 4V; Mercury


    Excellent replacement cam with strong torque. Requires custom tuning.

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft
BrandCOMP CAMS
Package Height6.4
Package Width7.2
Package Length25.5
Weight33.5 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)218
Cam StyleHydraulic roller follower
Grind NumberXE254BH-116
Exh. Duration Advertised (Deg)253
Engine Make/SizeFord 4.6L 4V
Intake Valve Lift With Factory Rocker Arm Ratio (I0.425
Int. Duration @ .050 In. (Deg)218
Basic Operating Rpm Range1,000-5,000
Intake Valve Lift0.425 in (10.795 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)253
Lobe Separation (Deg)116
Rpm Range1000-5000
Advertised Duration253 int./253 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.425
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.425 int./0.425 exh.
QuantitySold as a set of 4
Exhaust Valve Lift0.425 in (10.795 mm)
Advertised Intake Duration253
Intake Duration At 050 Inch Lift218
Exhaust Duration At 050 Inch Lift218
Advertised Exhaust Duration253
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift218 int./218 exh.
Valve Springs RequiredYes
Vendor Part Number106060
Package Qty1
Package TypeEA
