Vehicle Info NeededCOMP CAMSPART NUMBER: 249-106100

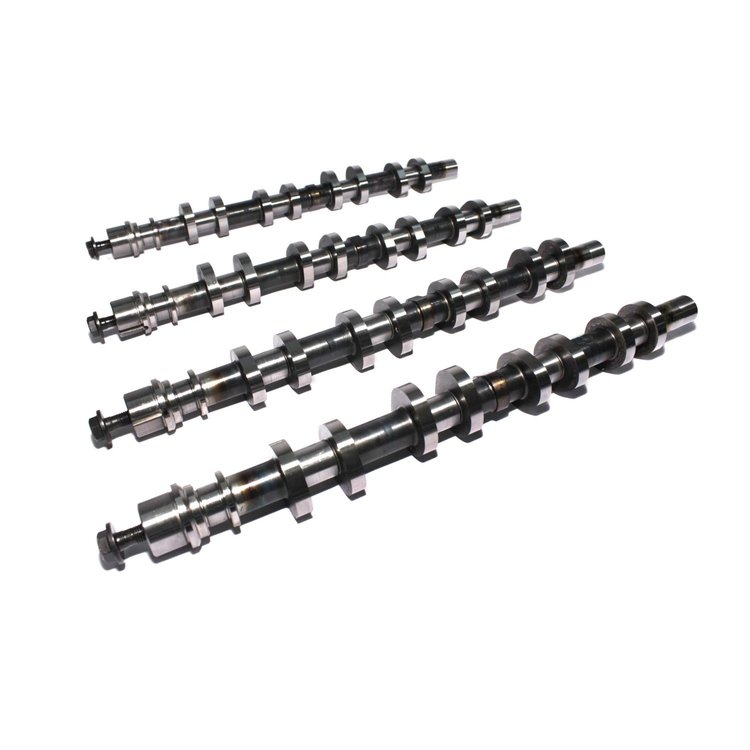

Comp Cams Xtreme Energy Hydraulic Roller Camshafts
$1,70796$2134.95You Save$426.99
Ships on 09/09/2026
Lowest Price GuaranteeFord 4.6L/5.4L DOHC MODULAR 4V 1993-Present
- Xtreme RPM Series Hydraulic Roller Swinging Follower Camshaft
Lift: .425"/.425"
Duration: 261°/257°
Lobe Separation Angle: 114°
RPM Range: 1200-5400
Great street performance featuring excellent torque and horsepower gains with a noticable idle. No computer modifications needed.
Ford; Modular; 4-Valve; Mustang; Mustang GT; SN95; 4V; Mercury
Great street performance featuring excellent torque and horsepower gains with a noticeable idle. Requires custom tuning.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
- Comp Cams Xtreme RPM series can be used in any street or street/strip application where both throttle response and top-end horsepower is desired. These camshafts are designed to take advantage of the latest improvements in valve train components and the newest developments in camshaft design. Their aggressive lobe design produces better throttle response and top end horsepower than other cams with the same duration @ .050'' lift, while delivering increased engine vacuum. We do not recommend the use of stock valve train components with these camshafts due to the aggressive lobe designs.
Part TypeCamshaft
Product LineComp Cams Xtreme RPM Series Hydraulic Roller Camshafts
BrandCOMP CAMS
Package Height6.4
Package Width7.2
Package Length25.6
Weight32.1 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)222
Cam StyleHydraulic roller follower
Grind NumberXE262AH-114
Exh. Duration Advertised (Deg)257
Engine Make/SizeFord 4.6L 4V
Intake Valve Lift With Factory Rocker Arm Ratio (I0.425
Int. Duration @ .050 In. (Deg)226
Basic Operating Rpm Range1,200-5,400
Intake Valve Lift0.425 in (10.795 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)261
Lobe Separation (Deg)114
Rpm Range1200-5400
Advertised Duration261 int./257 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.425
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.425 int./0.425 exh.
QuantitySold as a set of 4
Exhaust Valve Lift0.425 in (10.795 mm)
Advertised Intake Duration261
Intake Duration At 050 Inch Lift226
Exhaust Duration At 050 Inch Lift222
Advertised Exhaust Duration257
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift226 int./222 exh.
Valve Springs RequiredYes
Vendor Part Number106100
Package Qty1
Package TypeEA
