Vehicle Info NeededCOMP CAMSPART NUMBER: 249-106160

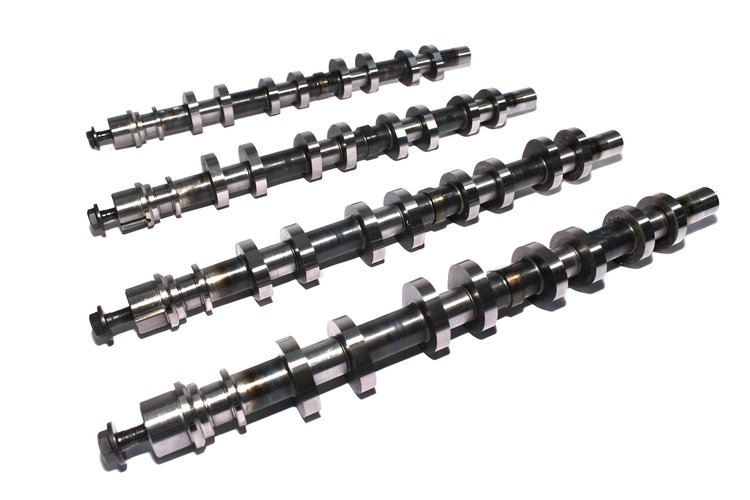

Comp Cams Xtreme Energy Hydraulic Roller Camshafts
$1,70796$2134.95You Save$426.99
Ships on 09/09/2026
Lowest Price GuaranteeFord 4.6L/5.4L DOHC MODULAR 4V 1993-Present
- Xtreme RPM Series Hydraulic Roller Swinging Follower Camshaft
Lift: .425"/.425"
Duration: 265°/265°
Lobe Separation Angle: 116°
RPM Range: 1500-6000
Serious street effort with maximum power gains in the mid to upper RPM's. Requires computer modifications and lower gears. Automatic cars need a 2000+ RPM stall. Mild rough idle.
Ford; Modular; 4-Valve; Mustang; Mustang GT; SN95; 4V; Mercury
Serious street effort with maximum power gains in mid to upper RPM. Requires computer modifications and lower gears. Automatic cars need a 2000+ stall. Requires custom tuning. Mild rough idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandCOMP CAMS
Package Height6.4
Package Width7.2
Package Length25.5
Weight33.5 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic roller follower
Grind NumberXE266BH-116
Exh. Duration Advertised (Deg)265
Engine Make/SizeFord 4.6L 4V
Intake Valve Lift With Factory Rocker Arm Ratio (I0.425
Int. Duration @ .050 In. (Deg)230
Basic Operating Rpm Range1,500-6,000
Intake Valve Lift0.425 in (10.795 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)265
Lobe Separation (Deg)116
Rpm Range1500-6000
Advertised Duration265 int./265 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.425
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.425 int./0.425 exh.
QuantitySold as a set of 4
Exhaust Valve Lift0.425 in (10.795 mm)
Advertised Intake Duration265
Intake Duration At 050 Inch Lift230
Exhaust Duration At 050 Inch Lift230
Advertised Exhaust Duration265
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift230 int./230 exh.
Valve Springs RequiredYes
Vendor Part Number106160
Package Qty1
Package TypeEA
